Castor 150mm Red Poly Sw/Brak 622PNBSWB Varley
SKU:
10007559

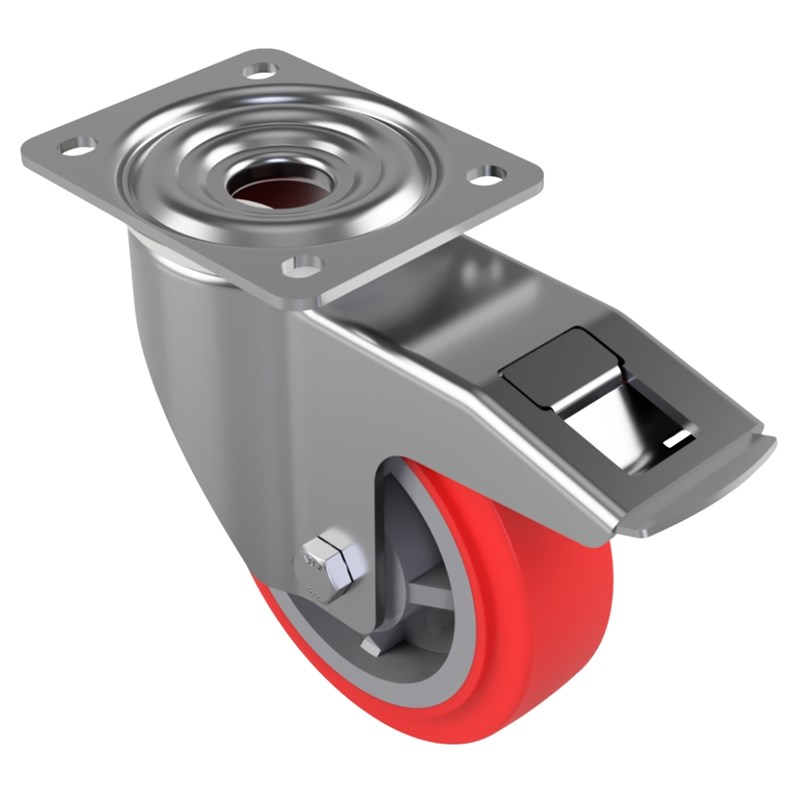

The BIL Group 622PNBSWB Polyurethane on Nylon Plate Swivel Castor Brake 150mm 500kg Load is a heavy-duty industrial castor designed for maximum strength, stability, and controlled mobility. Featuring a total lock brake and roller bearing wheel, it delivers smooth movement while ensuring secure positioning under high load conditions.
Features & Benefits
» Pressed steel swivel plate construction for exceptional strength and durability
» 150mm red polyurethane tread on grey nylon wheel for smooth, quiet operation and floor protection
» Roller bearing wheel for improved load handling and reduced rolling resistance
» Total lock brake secures both wheel and swivel movement for maximum safety
» High 500kg load capacity suitable for heavy-duty industrial applications
» 190mm overall height for stable and reliable performance
» 135 x 110mm top plate with 105 x 80mm hole centres for secure installation
» Ideal for heavy equipment, industrial trolleys, and high-load mobility systems
Technical Specifications
» Bearing Type: Roller
» Castor Type: Swivel with Total Lock Brake
» Colour / Shore Hardness: Red Polyurethane on Grey Nylon Rim / 95°-98° Shore A
» Diameter (mm): 150
» Fixing Option: Plate
» Fork Thickness (mm): 4
» Height (mm): 190
» Hole Centres (mm): 105 x 80
» Load Capacity (kg): 500
» Plate Size (mm): 135 x 110
» Swivel Radius (mm): 182
» Temperature Resistance: -20°C to +60°C
» To Suit Fixing Bolt (mm): 10
» Top Plate Thickness (mm): 4
» Tread Width (mm): 50
» Weight: 2.72 kg
» Wheel Material: Polyurethane on Nylon
