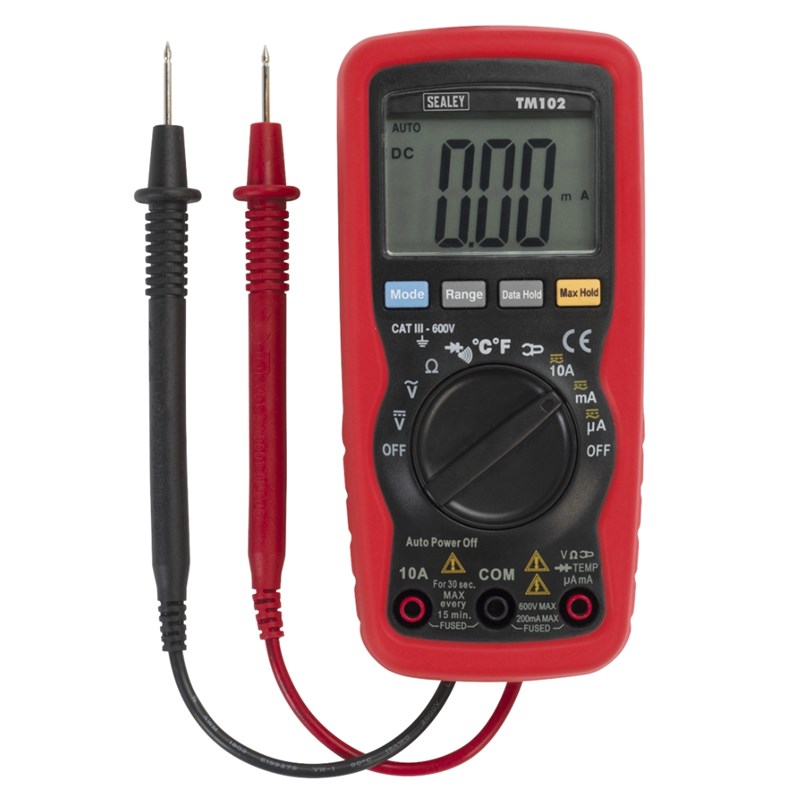

Multimeter Digital 8 Function TM102 Sealey
SKU:
10007709
The Sealey TM102 8-Function Professional Auto-Ranging Digital Multimeter conforms to EN 61010-1 CATIII 600V safety requirements for electrical equipment for measurement, control and laboratory use. It features temperature measurement capability, max./data hold and auto-power-off functions.
Features & Benefits
» High precision auto-ranging multimeter
» Supplied in a zipped pouch with carry strap
» Conforms to EN 61010-1 CATIII 600V safety requirements
» Double moulded housing with soft grip care and large display for ease of use
» Practical probe and lead storage with integral upright stand for use on the workbench
» Features temperature measurement capability, max./data hold and auto-power-off functions
Technical Specifications
» Duty Cycle: No
» Diode Test: Yes
» Nett Weight: 255g
» Transistor Test: No
» Conformity: EN 61010-1
» Continuity Audible: Yes
» Frequency (Accuracy): No
» Low Battery Indicator: Yes
» Battery (Supplied): 1 x 9V
» Capacitance (Accuracy): No
» Hi-Impact Rubber Case: Yes
» Digits x Height: 1.96 x 24.5mm
» Size (L x W x D): 150 x 70 x 48mm
» AC Voltage (Accuracy): 200mV (+1.5%), 2V (+1.2%), 20V, 200V (+1.5%), 600V (+2%)
» DC Voltage (Accuracy): 0-200mV (+0.5%), 2V, 20V, 200V (+1.2%), 600V (+1.5%)
» AC Current (Accuracy): 200µA (+1.5%), 2000µA, 20mA, 200mA (+1.8%), 10A (+3%)
» DC Current (Accuracy): 200µa (+1%), 2000µa, 20mA, 200mA (+1.5%), 10A (+2.5%)
» Resistance (Accuracy): 0-200? (+1.2%), 2k? (+1%), 20k?, 200k?, 2M? (+1.2%), 20M? (+2%)
» Temperature (Accuracy): -50°C to 1000°C (+3%), -58 to 1832°F (+3%)
