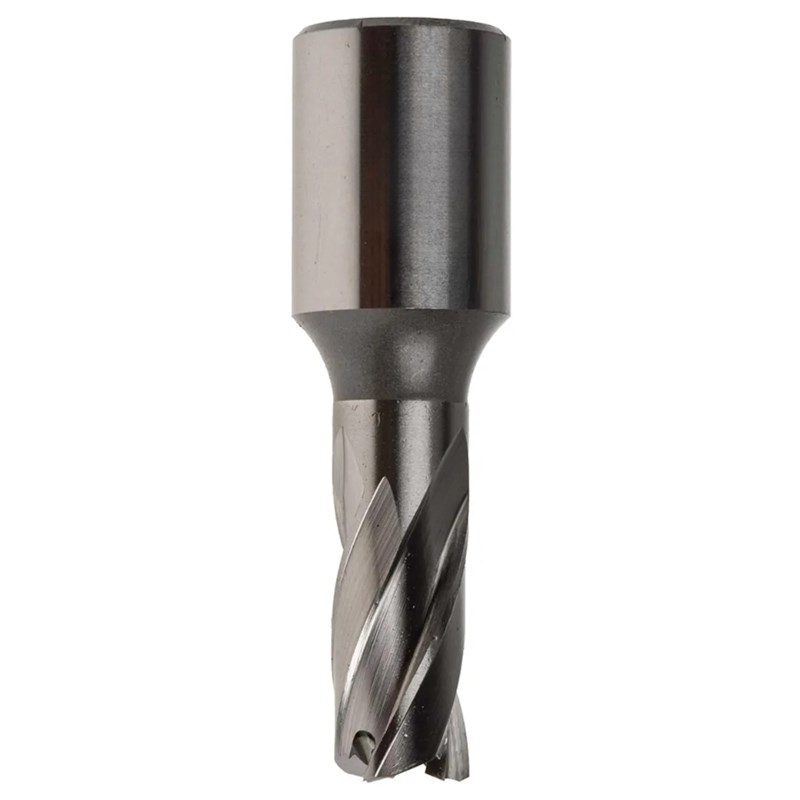

Broach Cutter 12mm x 30 M2 12S RAP120
SKU:
10010444
The Rotabroach RAP120 Raptor M2AL Annular Cutter is a high performance annular cutter designed for up to 25mm depth of cut. It highlights specially engineered Raptor tooth geometry for enhanced cutting efficiency, along with M2AL construction for greater hardness, faster cutting speeds and extended tool life. Capable of cutting materials up to 900N/mm² tensile strength, it delivers reliable performance in demanding industrial applications.
Features & Benefits
» The 25mm depth of cut capability makes it ideal for a wide range of structural and fabrication tasks
» The specially designed Raptor tooth geometry enhances cutting efficiency and performance
» The M2AL material construction provides greater cutter hardness for increased durability and extended tool life
» The cutter is capable of machining materials up to 900N/mm² tensile strength for demanding applications
» The design delivers optimum cutting speed and performance when used with a recommended pilot pin
Technical Specifications
» Diameter: 12mm
» Depth of Cut: 25mm
» Substrate: HSS
» Substrate Description: M2AL (Aluminium High Speed Steel)
