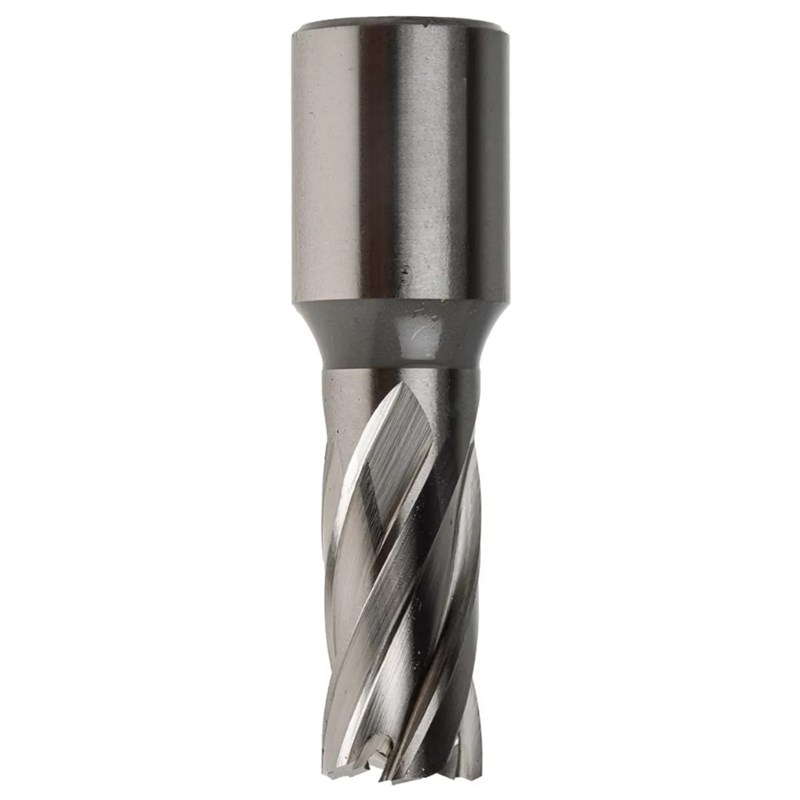

Broach Cutter 14mm x 30 M2 14S RAP140
SKU:
10010446
The Rotabroach RAP140 Raptor M2AL Annular Cutter is a high performance annular cutter designed for up to 25mm depth of cut. It highlights exclusive Raptor tooth geometry for enhanced cutting efficiency, combined with M2AL construction for greater hardness, faster cutting speeds and extended tool life. Capable of cutting materials up to 900N/mm² tensile strength, it delivers dependable results in demanding industrial applications.
Features & Benefits
» The 25mm depth of cut capability makes it suitable for a wide range of fabrication and structural drilling tasks
» The specially engineered Raptor tooth geometry improves cutting performance and efficiency
» The M2AL material construction increases cutter hardness for enhanced durability and maximum tool life
» The cutter is capable of machining materials up to 900N/mm² tensile strength for heavy duty applications
» The design delivers optimum speed and performance when used with a recommended pilot pin
Technical Specifications
» Diameter: 14mm
» Depth of Cut: 25mm
» Substrate: HSS
» Substrate Description: M2AL (Aluminium High Speed Steel)
