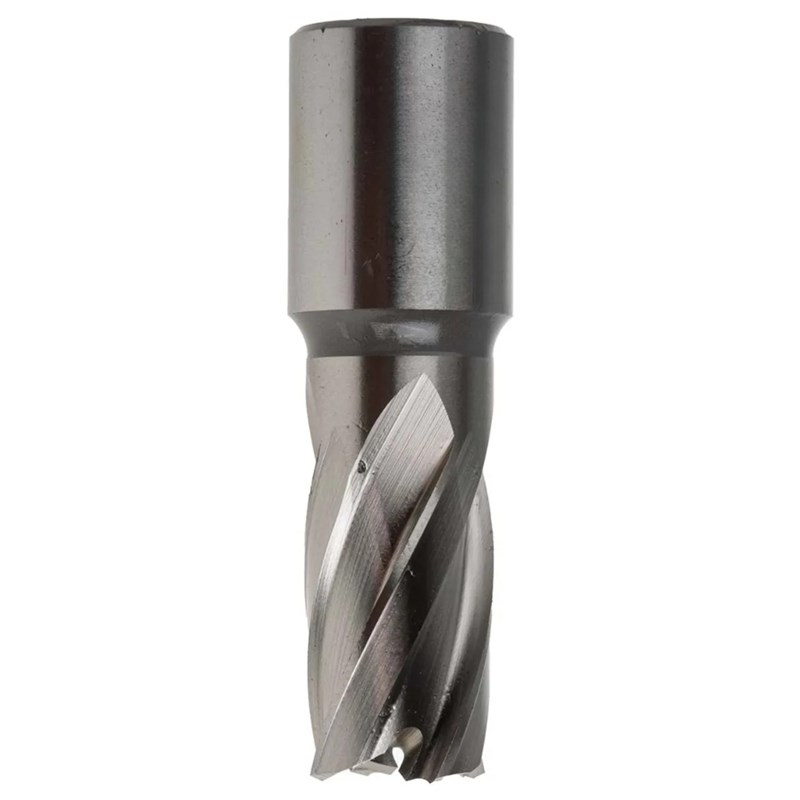

Broach Cutter 16mm x 30 M2 16S RAP160
SKU:
10010448
The Rotabroach RAP160 Raptor M2AL Annular Cutter is a high performance annular cutter designed for up to 25mm depth of cut. It highlights exclusive Raptor tooth geometry for superior cutting efficiency, combined with M2AL construction for enhanced hardness, faster cutting speeds and extended tool life. Capable of cutting materials up to 900N/mm² tensile strength, it delivers reliable performance in demanding industrial environments.
Features & Benefits
» The 25mm depth of cut capability makes it ideal for structural steel and fabrication applications
» The specially designed Raptor tooth geometry improves cutting speed and efficiency
» The M2AL material construction provides increased hardness for maximum durability and extended tool life
» The cutter can machine materials up to 900N/mm² tensile strength for heavy duty industrial use
» The design delivers optimum results when used with a recommended pilot pin for accurate centring and performance
Technical Specifications
» Diameter: 16mm
» Depth of Cut: 25mm
» Substrate: HSS
» Substrate Description: M2AL (Aluminium High Speed Steel)
