Broach Cutter 20mm x 30 M2 20S RAP200
SKU:
10010451

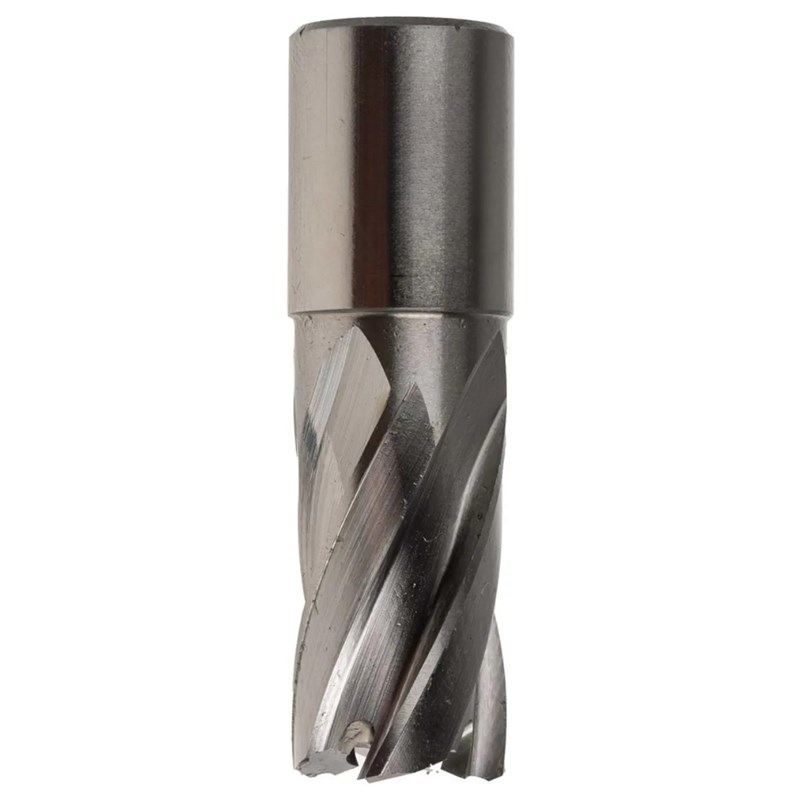

The Rotabroach RAP200 Raptor M2AL Annular Cutter is a high performance annular cutter designed for up to 25mm depth of cut. It highlights exclusive Raptor tooth geometry for enhanced cutting efficiency, alongside M2AL construction for increased hardness, faster cutting speeds and extended tool life. Capable of cutting materials up to 900N/mm² tensile strength, it delivers dependable results in demanding industrial applications.
Features & Benefits
» The 25mm depth of cut capability makes it ideal for structural steel and fabrication drilling tasks
» The specially designed Raptor tooth geometry improves cutting performance and efficiency
» The M2AL material construction provides greater hardness for enhanced durability and maximum tool life
» The cutter can machine materials up to 900N/mm² tensile strength for heavy duty industrial use
» The design achieves optimum results when used with a recommended pilot pin for accurate centring and clean cutting
Technical Specifications
» Diameter: 20mm
» Depth of Cut: 25mm
» Substrate: HSS
» Substrate Description: M2AL (Aluminium High Speed Steel)
