Broach Cutter 24mm x 30 M2 24S RAP240
SKU:
10010453

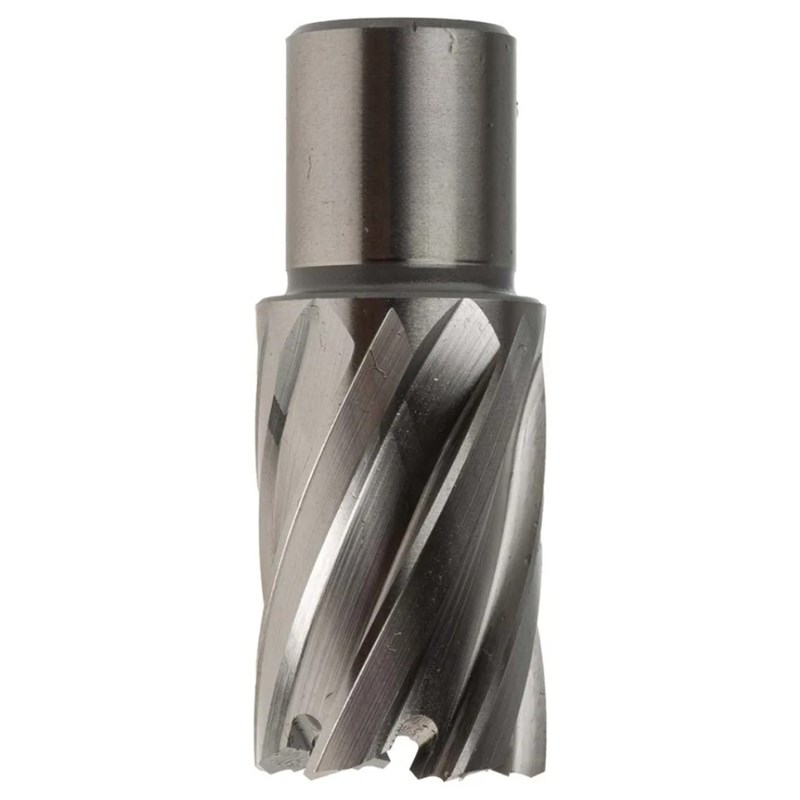

The Rotabroach RAP240 Raptor M2AL Annular Cutter is a high performance annular cutter designed for up to 25mm depth of cut. It highlights exclusive Raptor tooth geometry for enhanced cutting efficiency, combined with M2AL construction for greater hardness, faster cutting speeds and maximum tool life. Capable of cutting materials up to 900N/mm² tensile strength, it delivers consistent and dependable results in demanding industrial applications.
Features & Benefits
» The 25mm depth of cut capability makes it ideal for structural steel and fabrication drilling tasks
» The specially designed Raptor tooth geometry improves cutting performance and efficiency
» The M2AL material construction provides increased hardness for enhanced durability and extended service life
» The cutter can machine materials up to 900N/mm² tensile strength for heavy duty industrial use
» The design achieves optimum results when used with a recommended pilot pin for accurate centring and clean cutting
Technical Specifications
» Diameter: 24mm
» Depth of Cut: 25mm
» Substrate: HSS
» Substrate Description: M2AL (Aluminium High Speed Steel)
