Broach Cutter 30mm x 30 M2 30S RAP300
SKU:
10010457

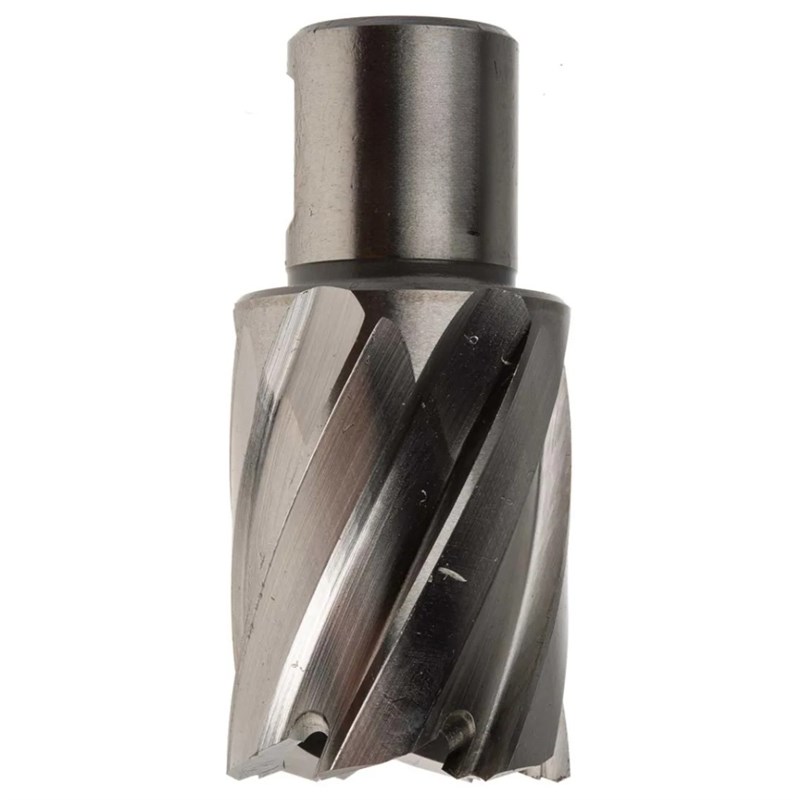

The Rotabroach RAP300 Raptor M2AL Annular Cutter is a high performance annular cutter designed for up to 25mm depth of cut. It highlights exclusive Raptor tooth geometry for enhanced cutting efficiency, combined with M2AL construction for greater hardness, faster cutting speeds and extended tool life. Capable of cutting materials up to 900N/mm² tensile strength, it delivers reliable and consistent results in demanding industrial applications.
Features & Benefits
» The 25mm depth of cut capability makes it suitable for structural steel and fabrication drilling applications
» The specially engineered Raptor tooth geometry enhances cutting speed and overall efficiency
» The M2AL material construction increases cutter hardness for improved durability and maximum tool life
» The cutter can machine materials up to 900N/mm² tensile strength for heavy duty industrial use
» The design delivers optimum performance when used with a recommended pilot pin for accurate centring and clean cutting
Technical Specifications
» Diameter: 30mm
» Depth of Cut: 25mm
» Substrate: HSS
» Substrate Description: M2AL (Aluminium High Speed Steel)
