Self Drill Timb 6.3x45mm DS45W16B (90) Timco
SKU:
10026785

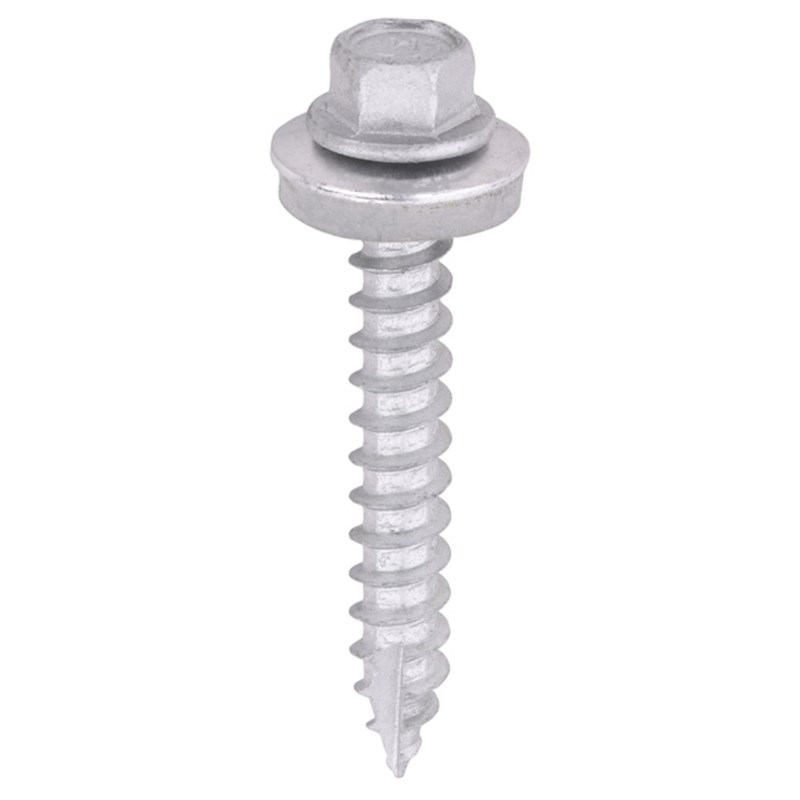

The TIMCO DS45W16B Silver Organic Exterior Hex Timber Screw is a durable fixing designed to attach sheet metal up to 0.8mm thickness to timber. It highlights an integrated EPDM washer to prevent water ingress once installed and an exterior plating that provides long-lasting corrosion resistance. With a single slash point to reduce torque and minimise timber splitting, it offers dependable performance in external applications.
Features & Benefits
» Designed to securely fix sheet metal up to 0.8mm thickness to timber substrates
» Integrated EPDM washer forms a watertight seal to prevent water ingress after installation
» Exterior plating delivers a reliable and durable corrosion resistant coating tested to 500 hours salt-spray
» Single slash point reduces driving torque and lowers the risk of timber splitting at low edge distances
» Hex head design enables strong drive engagement and controlled installation
Technical Specifications
» Corrosion Rating (1-5): 3 - Urban & Industrial Areas With A Low Salt Atmosphere
» Effective Thread L: 42mm
» EPDM Washer: 16mm
» Finish: Exterior (Silver Organic)
» FW Ø: 12mm
» Head H: 5.7mm
» Head Type: Hex
» Material: Case & Core Hardened Carbon Steel
» MDT: 0.9mm
» Pack Qty: 100
» Pack Type: Box
» Point Type: Single Slash
» Size: 6.3 x 45mm
» Thread Coverage: Fully Threaded
» Thread Type: 60° Single Deep
» Type: For Timber
