Castor 100mm Grey Rubber Swivel Brake Varley
SKU:
10053976

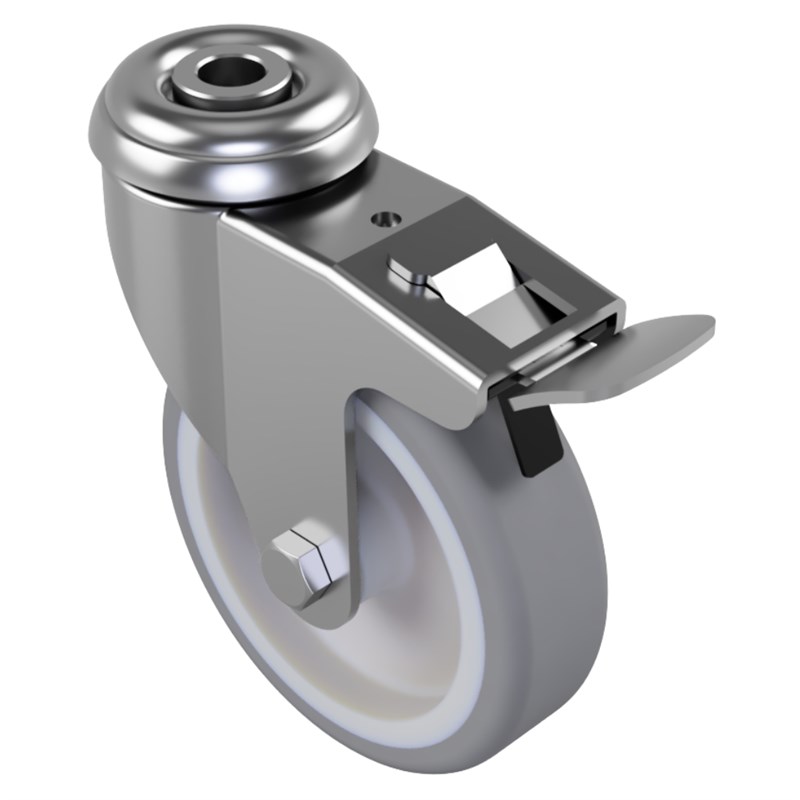

The BIL Group V32V100TRPB12 Thermoplastic Rubber on Polypropylene Bolt Hole Swivel Castor Brake 100mm 80kg Load is a robust and reliable castor designed for smooth mobility with secure locking capability. Its bolt hole fixing and total lock brake make it ideal for applications requiring both easy movement and stable positioning.
Features & Benefits
» Pressed steel swivel construction for strength and durability
» 12mm bolt hole fixing for secure and simple installation
» 100mm grey thermoplastic rubber wheel for smooth and quiet operation
» Polypropylene centred wheel with plain bore for dependable performance
» Total lock brake secures both wheel and swivel movement for maximum stability
» 80kg load capacity suitable for medium-duty applications
» 134mm overall height for improved clearance and usability
» Ideal for trolleys, equipment, and general industrial mobility applications
Technical Specifications
» Bearing Type: Plain
» Castor Type: Swivel with Total Lock Brake
» Colour / Shore Hardness: Grey Rubber on Grey Polypropylene Rim / 75-90 Shore A
» Diameter (mm): 100
» Fixing Option: Bolt Hole
» Fork Thickness (mm): 2.5
» Head Dia (mm): 54
» Height (mm): 134
» Load Capacity (kg): 80
» Swivel Radius (mm): 105
» Temperature Resistance: -20°C to 60°C
» To Suit Fixing Bolt (mm): 12
» Tread Width (mm): 28
» Weight: 0.524 kg
» Wheel Material: Rubber on Polypropylene
