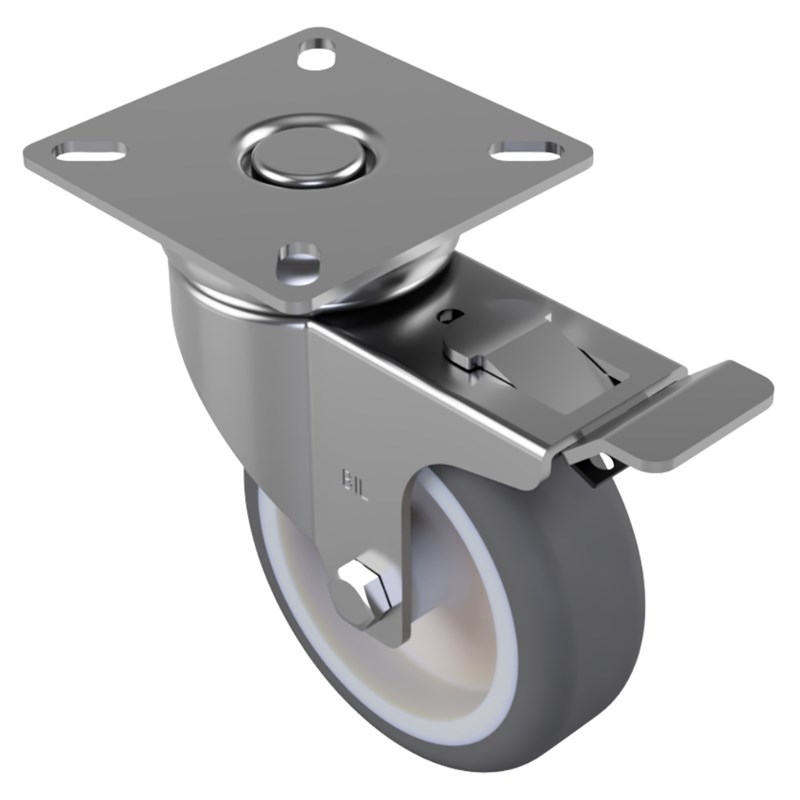

Castor 75mm Grey Rubber Swivel Brake Varley
SKU:
10054627
The BIL Group V32V075TRPP01 Thermoplastic Rubber on Polypropylene Plate Swivel Castor Brake 75mm 70kg Load is a versatile and reliable castor designed for smooth mobility and secure positioning in light to medium-duty applications. Its total lock brake ensures both wheel and swivel movement are fully secured when stationary.
Features & Benefits
» Pressed steel swivel plate construction for strength and durability
» 75mm grey thermoplastic rubber wheel for smooth and quiet operation
» Polypropylene centred wheel with plain bore for reliable performance
» Total lock brake secures both wheel and swivel movement for stability
» 70kg load capacity suitable for light to medium-duty applications
» 100mm overall height for improved ground clearance
» 65mm x 65mm top plate with 48mm x 48mm hole centres for secure fitting
» Ideal for trolleys, furniture, and general equipment mobility
Technical Specifications
» Bearing Type: Plain
» Castor Type: Swivel with Total Lock Brake
» Colour / Shore Hardness: Grey Rubber on Grey Polypropylene Rim / 75-90 Shore A
» Diameter (mm): 75
» Fixing Option: Plate
» Fork Thickness (mm): 2
» Height (mm): 100
» Hole Centres (mm): 48 x 48
» Load Capacity (kg): 70
» Plate Size (mm): 65 x 65
» Swivel Radius (mm): 84
» Temperature Resistance: -20°C to 60°C
» To Suit Fixing Bolt (mm): 6
» Top Plate Thickness (mm): 2
» Tread Width (mm): 25
» Weight: 0.365 kg
» Wheel Material: Rubber on Polypropylene
