Filter/Reg + Lub 1/4"BSP Semi-Auto ATCFRL6 PCL
SKU:
10068125

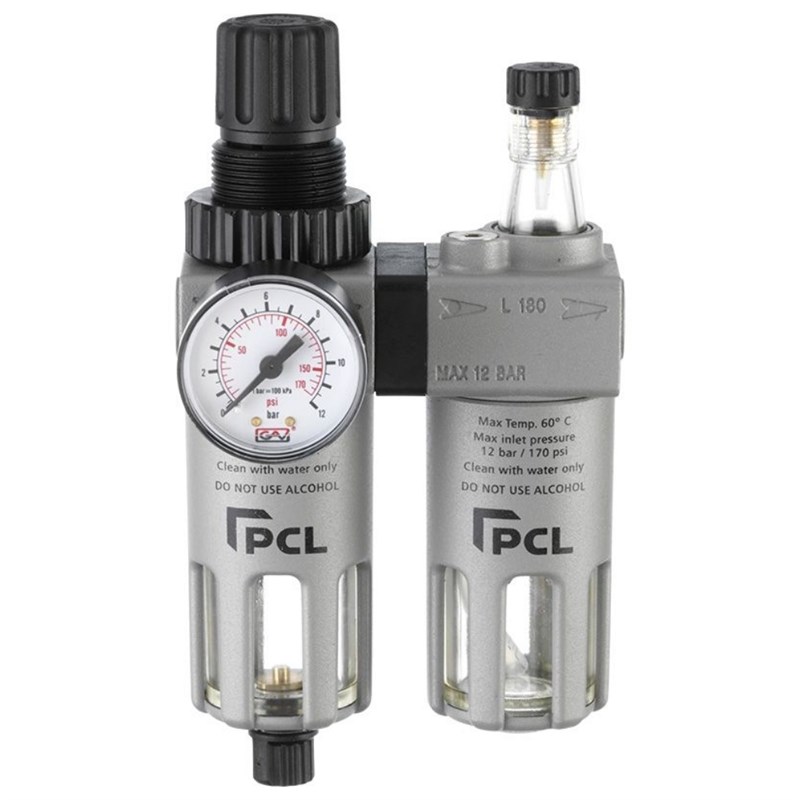

The PCL ATCFRL6 1/4 Air Treatment Filter/Regulator/Lubricator is a compact and efficient air preparation unit designed to deliver clean, dry and regulated compressed air for optimal tool performance. It highlights effective filtration down to 10 microns alongside precise pressure control and lubrication, helping extend equipment life and improve safety. Built for reliability and ease of use, it is an essential addition to workshop, automotive and industrial air systems.
Features & Benefits
» Combines filtration, pressure regulation and lubrication in one compact unit for efficient air line management
» Filters air to 10 microns removing moisture and contaminants to protect tools and equipment
» Integrated regulator allows accurate control of output air pressure for consistent performance
» Lubricator ensures tools receive the correct level of lubrication during operation
» Polycarbonate bowl allows easy visual monitoring of filter condition and liquid levels
» Protective metal bowl guard enhances safety in high pressure or demanding environments
» Manual or semi-automatic drain provides flexible and convenient maintenance options
» Locking device helps maintain consistent pressure settings during use
» Supplied with wall bracket and pressure gauge for easy installation and monitoring
» Replacement filter and bowl kits available supporting long-term maintenance and usability
Technical Specifications
» Air Treatment Type: Filter-Regulator-Lubricator
» Filtration Size: 10µm
» Inlet / Outlet Connection: 1/4in
» Outlet Connection: 1/8in
» Maximum Inlet Pressure: 12bar
» Drain Type: Manual / Semi Automatic
» Capacity Of Oil Bowl: 30ml
» Temperature Range: -10°C to 60°C
» Adjustment: 0 - 10bar
» Lubrication Adjustment (1 Drop): 300-600l/min
