Filter/Reg + Lub 1/2BSP Semi-Auto ATCFRL12 PCL
SKU:
10068126

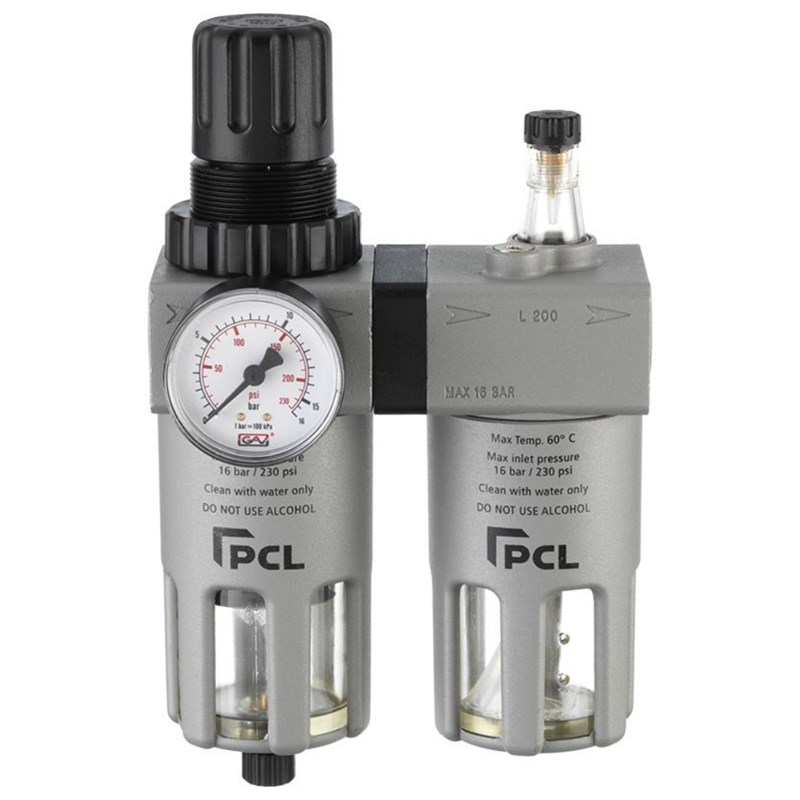

The PCL ATCFRL12 Air 1/2 Treatment Filter/Regulator/Lubricator is a complete air preparation unit designed to ensure clean, controlled and lubricated compressed air for optimal tool performance. It highlights efficient filtration down to 10 microns alongside precise pressure regulation and tool lubrication, helping extend equipment life. Built with durable components and user-focused features, it delivers reliable performance in workshop and industrial environments.
Features & Benefits
» Combines filtration, pressure regulation and lubrication in one unit for efficient air line management
» Filters air to 10 microns removing moisture and contaminants to protect tools and equipment
» Integrated regulator allows accurate control of output air pressure for consistent performance
» Lubricator ensures tools receive the correct level of lubrication during operation
» Polycarbonate bowls allow easy visual monitoring of element condition and liquid levels
» Protective metal bowl guard enhances safety in high pressure or demanding environments
» Manual or semi-automatic drain provides flexible and convenient maintenance options
» Locking device helps maintain consistent pressure settings during use
» Supplied with wall bracket and pressure gauge for easy installation and monitoring
» Replacement filter and bowl kits available supporting long-term maintenance and usability
Technical Specifications
» Air Treatment Type: Filter-Regulator-Lubricator
» Filtration Size: 10µm
» Inlet / Outlet Connection: 1/2in
» Outlet Connection: 1/8in
» Maximum Inlet Pressure: 16bar
» Drain Type: Manual / Semi Automatic
» Capacity Of Oil Bowl: 50ml
» Flow Rate: 5000l/min @ 6bar Supply
» Temperature Range: -10°C to 60°C
» Adjustment: 0 - 12bar
» Lubrication Adjustment (1 Drop): 300-600l/min
