Self Drill Timb 6.3x45mm DS45W19B (100) Timco
SKU:
10070519

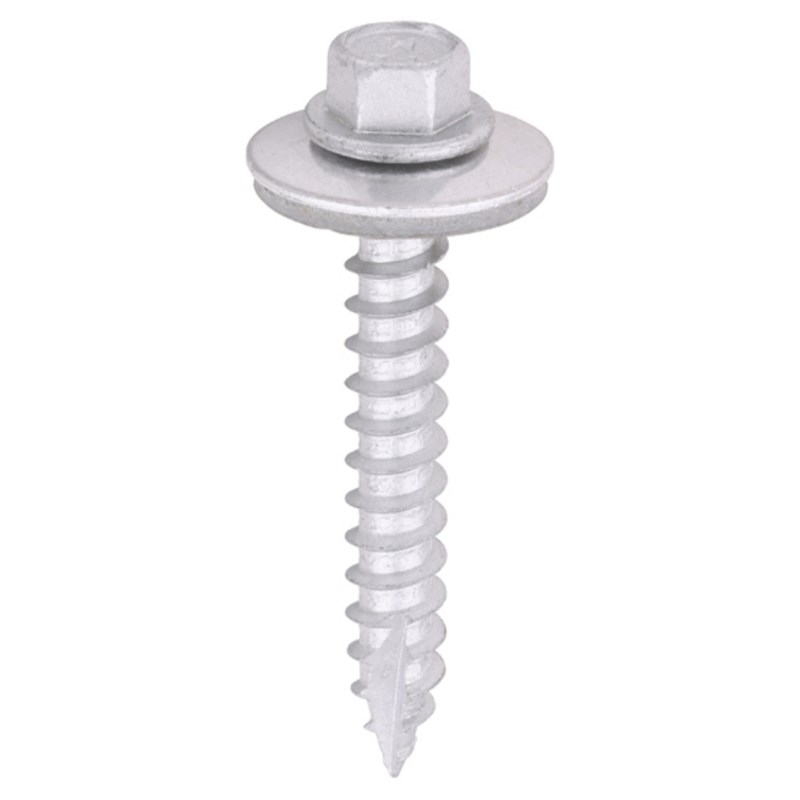

The TIMCO DS45W19B Silver Organic Exterior Hex Timber Screw is a robust fixing designed to attach sheet metal up to 0.8mm thickness to timber. It highlights an integrated EPDM washer that helps prevent water ingress once installed and an exterior plated finish that provides long-lasting corrosion resistance. With a single slash point to reduce torque and minimise the risk of timber splitting, it delivers dependable performance in demanding outdoor environments.
Features & Benefits
» Designed to securely fix sheet metal up to 0.8mm thickness to timber substrates
» Integrated EPDM washer forms a watertight seal to prevent water ingress after installation
» Exterior plating provides a reliable and durable corrosion resistant coating tested to 500 hours salt-spray
» Single slash point reduces driving torque and lowers the risk of timber splitting at low edge distances
» Hex head design ensures strong drive engagement and controlled, efficient installation
Technical Specifications
» Corrosion Rating (1-5): 3 - Urban & Industrial Areas With A Low Salt Atmosphere
» Effective Thread L: 42mm
» EPDM Washer: 19mm
» Finish: Exterior (Silver Organic)
» FW Ø: 12mm
» Head H: 5.7mm
» Head Type: Hex
» Material: Case & Core Hardened Carbon Steel
» MDT: 0.9mm
» Pack Qty: 100
» Pack Type: Box
» Point Type: Single Slash
» Size: 6.3 x 45mm
» Thread Coverage: Fully Threaded
» Thread Type: 60° Single Deep
» Type: For Timber
