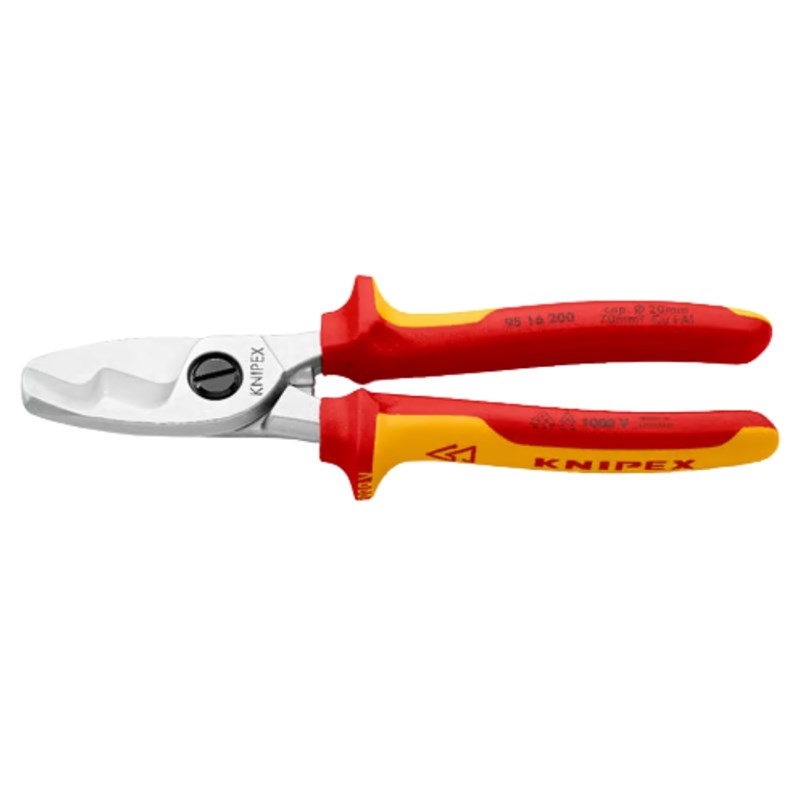

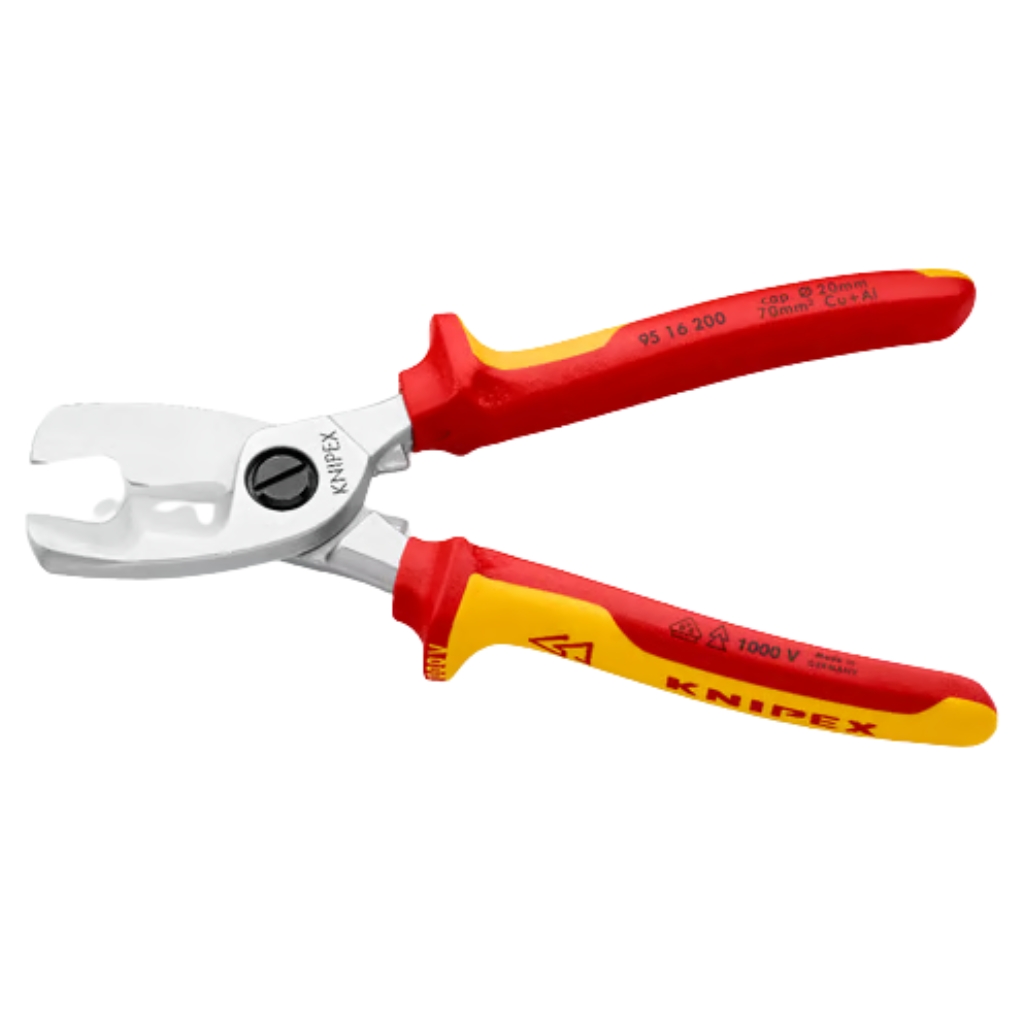

Cable Shears 200mm 95 16 200SB Knipex
SKU:
10070752
The Knipex 95 16 200 Cable Shears with Twin Cutting Edge are precision tools designed for cleanly cutting stranded copper and aluminium cables up to 70 mm². Featuring a specialised twin cutting edge, they first cut through the insulation before smoothly cutting the metal conductors for easier operation. With a scissor-action cutting principle and insulated multi-component grips, they deliver precise, efficient, and comfortable cable cutting for electrical installation work.
Features & Benefits
» Twin Cutting Edge Design – First cuts through insulation before cleanly cutting metal conductors for easier handling of larger cables
» Cuts Up to 70 mm² – Suitable for stranded and finely stranded copper and aluminium cables
» Scissor-Action Cutting – Produces smooth, clean cuts without crushing insulation or deforming cable ends
» Reduced Manual Effort – Favourable transmission ratio allows efficient cutting with less force
» Precision Ground Hardened Blades – Ensures long-lasting sharpness and consistent cutting performance
» Adjustable Bolted Joint – Self-locking joint can be adjusted for smooth and precise operation
» Insulated Multi-Component Handles – Provide additional protection when working near live parts
» Ideal for Electrical Installation – Designed to deliver reliable results while protecting cable insulation
» Note – Not suitable for cutting steel wire or hard drawn copper conductors
Technical Specifications
» Part No.: 95 16 200
» EAN: 4003773026761
» Shears: Chrome-Plated
» Handles: Insulated With Multi-Component Grips, VDE-Tested
» Weight: 340 G
» Dimensions: 200 X 68 X 19 Mm
» Standard: DIN EN 60900 IEC 60900
» REACH Compliant: Does Not Contain SVHC
» RoHS Compliant: Not Applicable
» Cutting Capacity Copper Cable, Multiple-Stranded: 70 Mm²
» Cutting Capacity Copper Cable, Multiple-Stranded (Diameter): Ø 20 Mm
» AWG: 2 / 0
» VDE Tested: Yes
