Dropout 1/2" BSP PCL 300lpm PDO300PA
SKU:
10073863

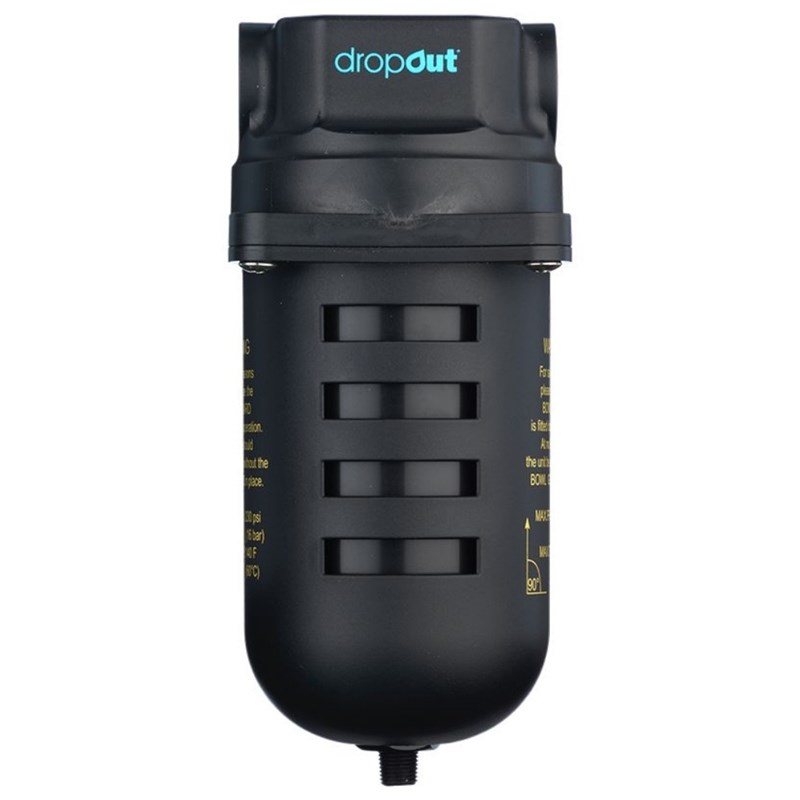

The PCL PDO300PA Dropout Compact Water Separator is a high-performance inline unit designed to deliver exceptional compressed air quality at the point of use. It highlights a unique patented design capable of removing virtually all liquid contaminants and fine particulates without the need for power or replacement filters. Engineered for efficiency and low maintenance, it provides reliable moisture-free air with zero ongoing servicing costs.
Features & Benefits
» Removes up to 99.9999% of liquid contaminants and 99% of solid particles down to 1 micron for superior air quality
» Unique Dropout design delivers high performance across a wide range of flow rates without requiring mains power
» Stand-alone solution replaces traditional water separators and coalescing filters reducing system complexity
» Ideal for paint and refinish environments where moisture-free air is essential
» Provides effective protection for compressed air equipment at point of use
» Can be installed upstream of refrigerant and desiccant dryers for additional system protection
» Maintenance-free design with built-in auto-drain eliminates servicing requirements
» No consumables required helping to achieve zero ongoing servicing costs
» No pressure drop caused by blocked filters ensuring consistent system performance
» Instant recovery from pulsed flows or stop-start operation for reliable use
» Easy to install design supports quick setup and minimal downtime
» Significantly lower life cycle costs compared to traditional filtration systems
Technical Specifications
» Approvals: ATEX Mark Ex II 2G IIC T6 Gb
» Air Treatment Type: Filter
» Filtration Size: 1µm
» Inlet / Outlet Connection: 1/2in
» Outlet Connection: 1/8in
» Maximum Inlet Pressure: 16bar
» Drain Type: Automatic
» Flow Rate: 283l/min / 11cfm
» Temperature Range: 0°C to 60°C
