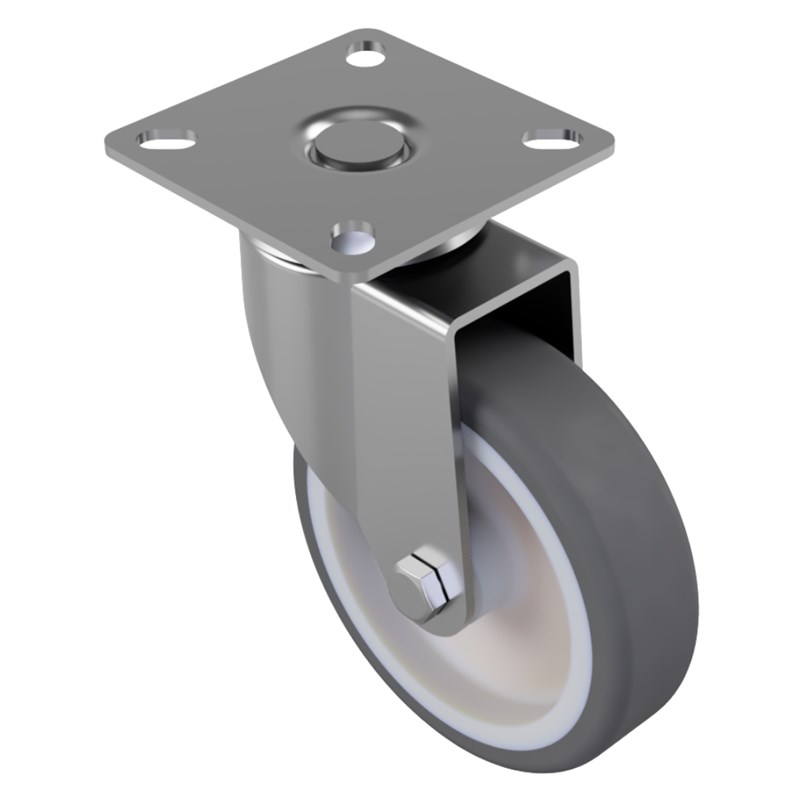

Castor 100mm Grey Rubber Swivel F/P Varley
SKU:
10089972
The BIL Group V30V100TRPP02 Thermoplastic Rubber on Polypropylene Plate Swivel Castor 100mm 80kg Load is a heavy-duty yet smooth-rolling castor designed for reliable mobility in demanding light to medium-duty applications. Its larger wheel size provides improved movement over uneven surfaces, making it ideal for equipment, trolleys, and furniture.
Features & Benefits
» Pressed steel swivel plate construction for strength and durability
» 100mm grey thermoplastic rubber wheel for smooth and quiet operation
» Polypropylene centred wheel with plain bore for dependable performance
» 80kg load capacity suitable for medium-duty applications
» 134mm overall height for improved clearance and stability
» Multiple hole centres (58mm x 58mm or 52mm x 52mm) for flexible fitting
» Ideal for trolleys, mobile equipment, and general industrial use
Technical Specifications
» Bearing Type: Plain
» Castor Type: Swivel
» Colour / Shore Hardness: Grey Rubber on Grey Polypropylene Rim / 75-90 Shore A
» Diameter (mm): 100
» Fixing Option: Plate
» Fork Thickness (mm): 2.5
» Height (mm): 134
» Hole Centres (mm): 58/52 x 58/52
» Load Capacity (kg): 80
» Plate Size (mm): 76 x 76
» Swivel Radius (mm): 87
» Temperature Resistance: -20°C to 60°C
» To Suit Fixing Bolt (mm): 8
» Top Plate Thickness (mm): 2.5
» Tread Width (mm): 27
» Weight: 0.557 kg
» Wheel Material: Rubber on Polypropylene
