Circular Saw 165mm 18v B/L DHS680Z Makita
SKU:
10097750

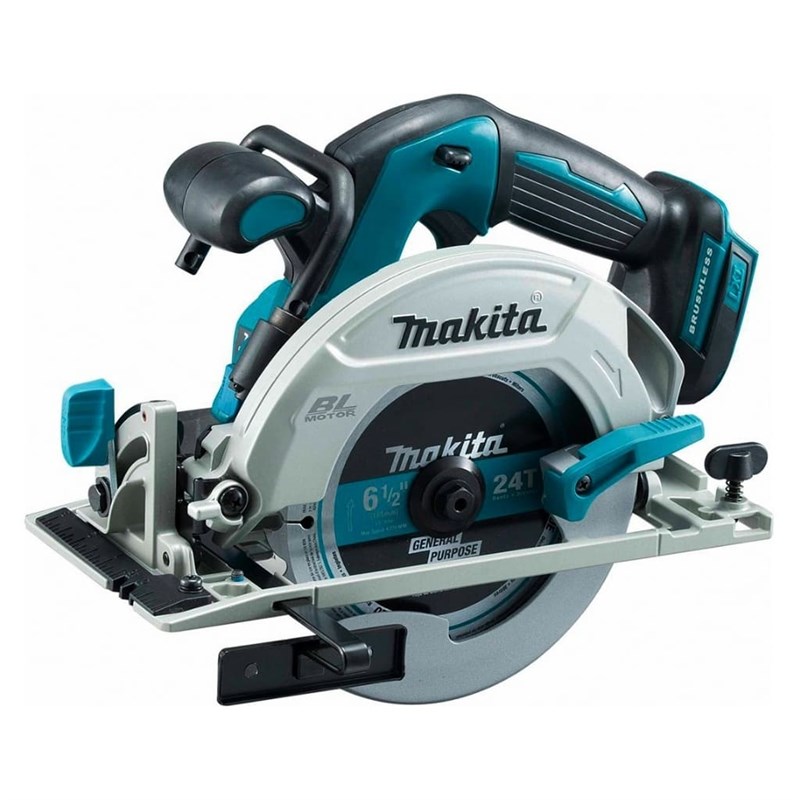

The Makita DHS680Z Circular Saw LXT (Body Only) is a compact and high-performance cordless tool designed for precision cutting in wood and other materials. Utilising Makita’s 18V LXT lithium-ion battery system, it features a brushless motor for longer run time and increased efficiency. With automatic speed control, a 165mm blade, and a lightweight ergonomic design, this circular saw provides excellent control and convenience for professional users.
In Stock
Typical Lead Time: 10 Days
Email a Friend
Stock Notice
Not enough Inventory? Submit your email address and desired total quantity below, and we will notify you when stock arrives.
Features & Benefits
» Efficient brushless and cordless circular saw designed for professional wood cutting applications
» Accepts blades with a 165 mm diameter, achieving a maximum cutting depth of 57 mm
» Compact and lightweight design ensures easy handling and manoeuvrability
» Ventilation air is directed through the front to keep the cut line clear for precise results
» Integrated LED light provides illumination of the work area for enhanced accuracy
» Compatible with a guide rule for improved cutting precision
» Brushless motor is maintenance-free and offers a long service life
» Rubber-coated handle delivers a firm and comfortable working grip
» ADT (Automatic Torque Drive Technology) adjusts speed and torque during operation for optimum performance
» Removable dust extraction connection helps maintain a cleaner working environment
» Battery protection system automatically shuts off power when battery level is low to safeguard battery life
Please Note: This is a body-only tool and does not include any batteries or charger, these are sold separately.
Technical Specifications
» Nominal Battery Voltage: 18 V
» Voltage LXT: Yes
» Maximum Cutting Depth at 90°: 57 mm
» Maximum Cutting Depth at 45°: 41 mm
» Maximum Cutting Depth at 50°: 37 mm
» Maximum Bevel Range (Left): 0 - 50º
» No Load Speed: 5000 min⁻¹
» Sound Power Level (LWA): 105 dB(A)
» Sound Pressure Level (LpA): 97 dB(A)
» Noise Uncertainty (K Factor): 3 dB(A)
» Tool Weight with Battery: 3.0 - 3.3 kg
» Product Dimensions (L x W x H): 350 x 170 x 238 mm
» Brushless Motor: Yes
» Battery Chemistry (Ni-Cd / Ni-MH / Li-ion): Li-ion
» Blade Diameter: 165 mm
» Bore Size (Arbour Diameter): 20 mm
» Electronic Brake: Yes
» Vibration Level, Cutting Wood: ≤ 2.5 m/s²
» Vibration Uncertainty (K Factor), Cutting Wood: 1.5 m/s²
» Vacuum Cleaner Connection Ø (In / Out): 35 / 40 mm
