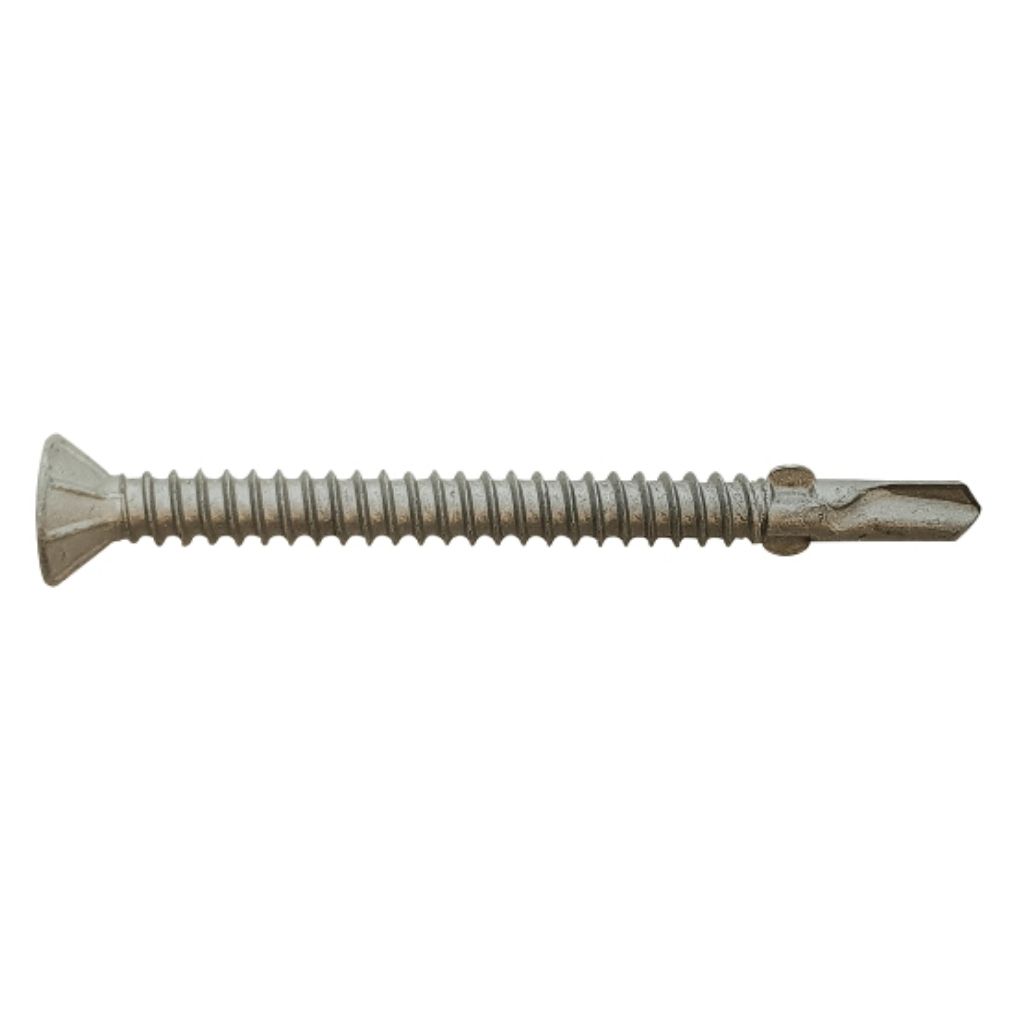

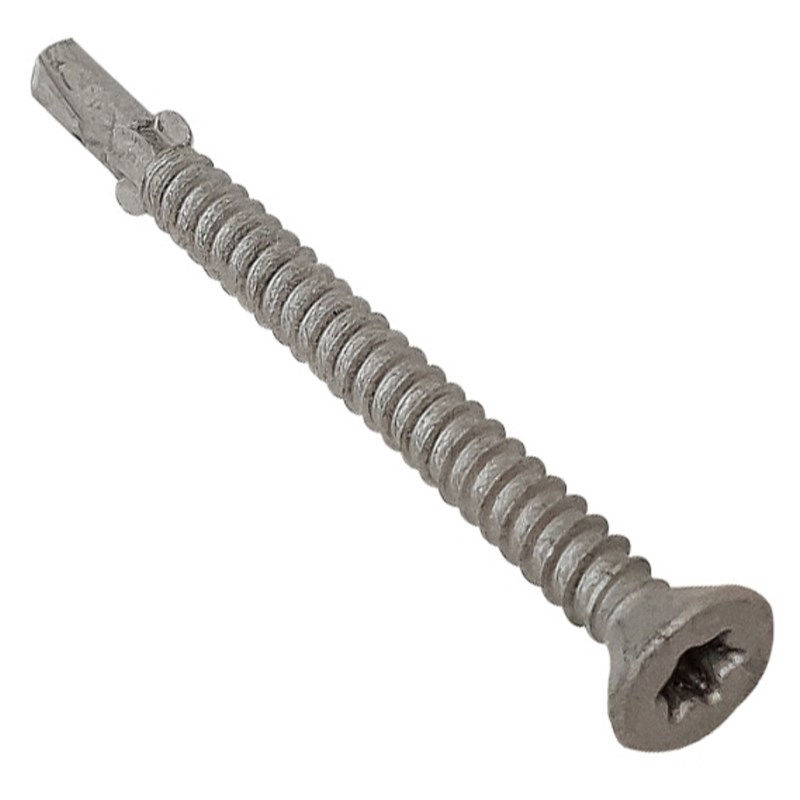

Roofing Screw Timb/Steel LD 5.5x80mm (Box100)
SKU:
10101192

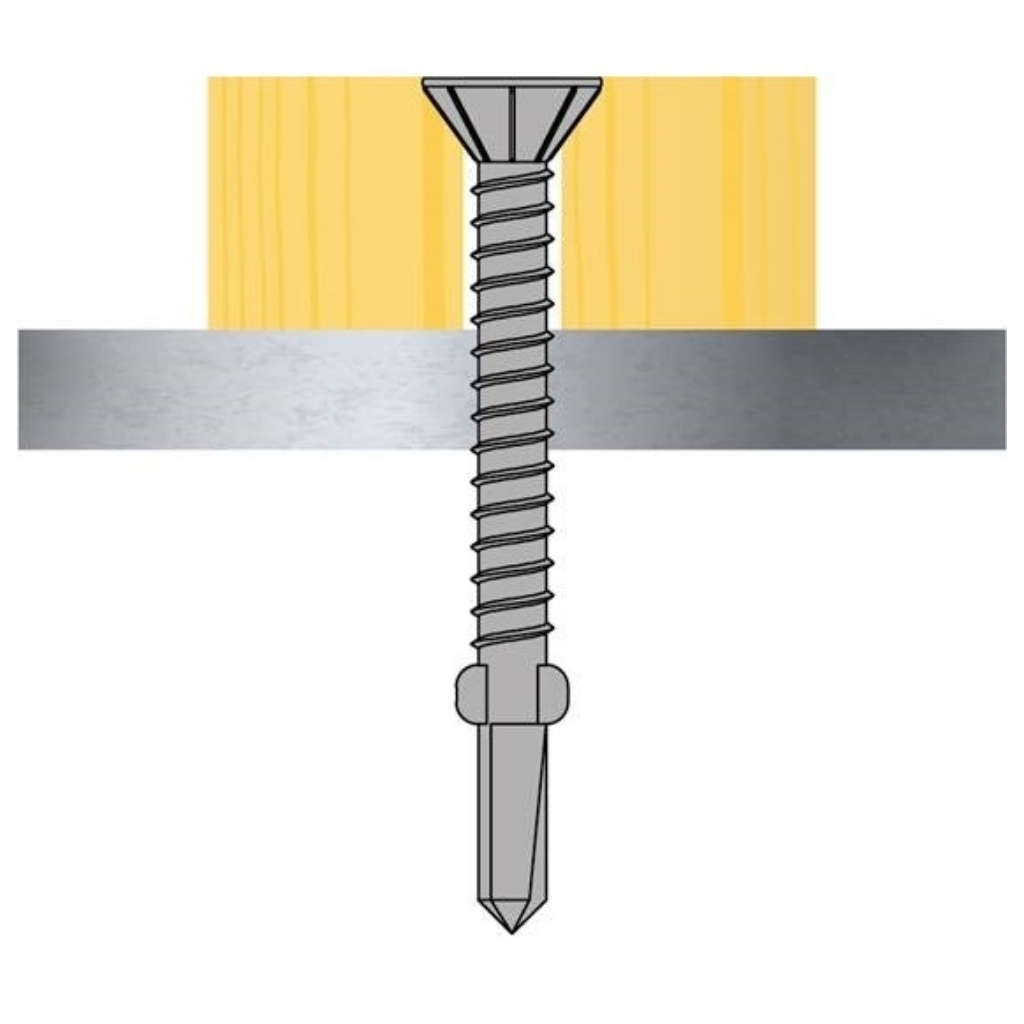

The Forgefix TechFast TFCUWWSD5580L CSK Wing No.3 Screw 5.5x80mm is a high-performance fixing designed for securely joining timber to steel structures.
It highlights a No.3 self-drilling tip for light gauge steel and innovative breakaway wings for efficient drilling and secure fastening.
Features & Benefits
» Designed for fixing timber to steel frame structures
» No.3 drill tip enables self-drilling in light gauge steel up to 5mm
» Breakaway wings create a clearance hole in timber to prevent thread damage
» Wings break off on contact with steel, allowing threads to engage securely
» Countersunk head with recessed ribs ensures a flush and neat finish

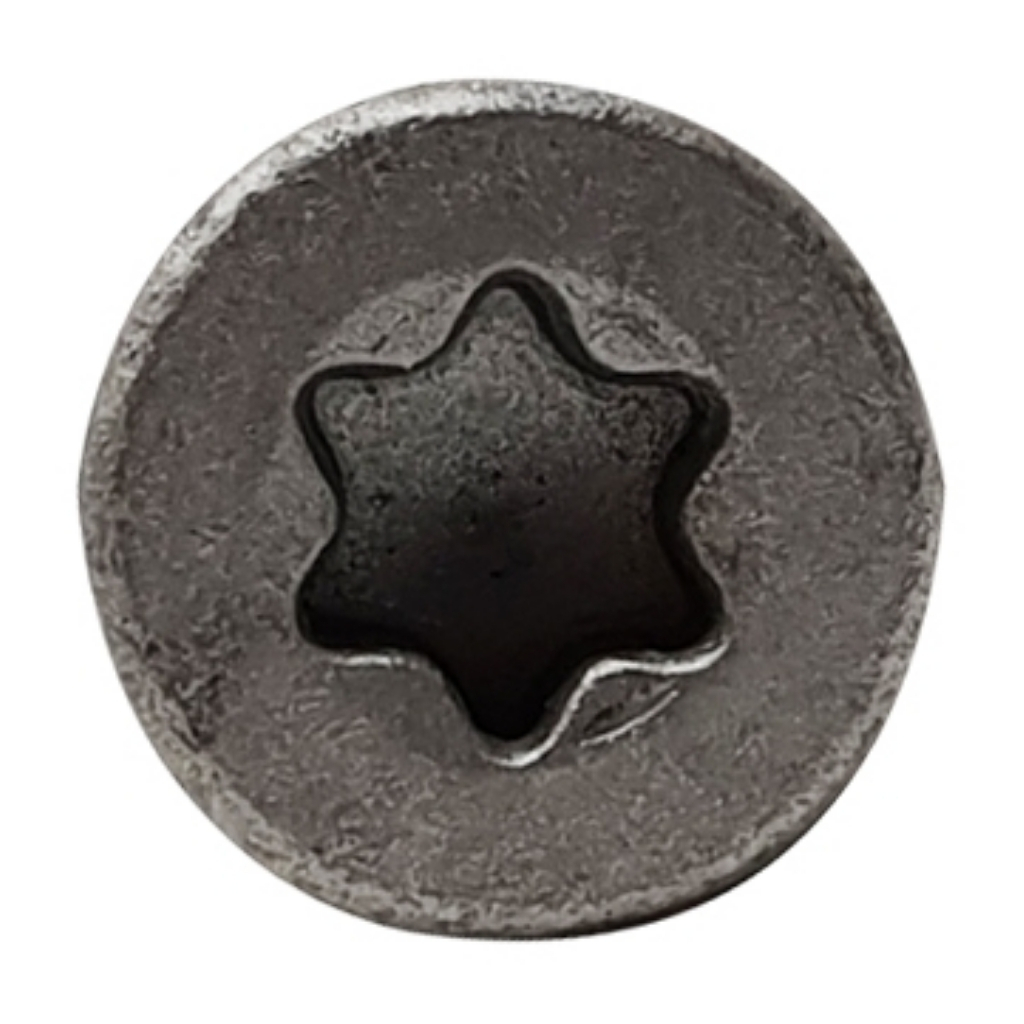

» Torx TX drive provides high torque transmission and reduces cam-out
» Elementech coating offers excellent corrosion resistance (tested to 1000 hours salt spray)
» Fire and corrosion resistant for long-term durability
» Suitable for light duty steel applications
» Complies with EU safety, health, and environmental standards
Technical Specifications
» Product Code: TFCUWWSD5580L
» Size: 5.5 X 80mm
» Finish: Elementech
» Diameter: 5.5mm
» Drill Point: 3
» Clamping Thickness: 60mm
» Brand: TechFast
» Length: 80mm
» Pack Quantity: 100
» Drive Type: Torx TX
» Head Type: Countersunk
» Steel Section: Light Duty
