Burr Ball Nose Tree P8119.6. x 6mm Dormer
SKU:
10101854

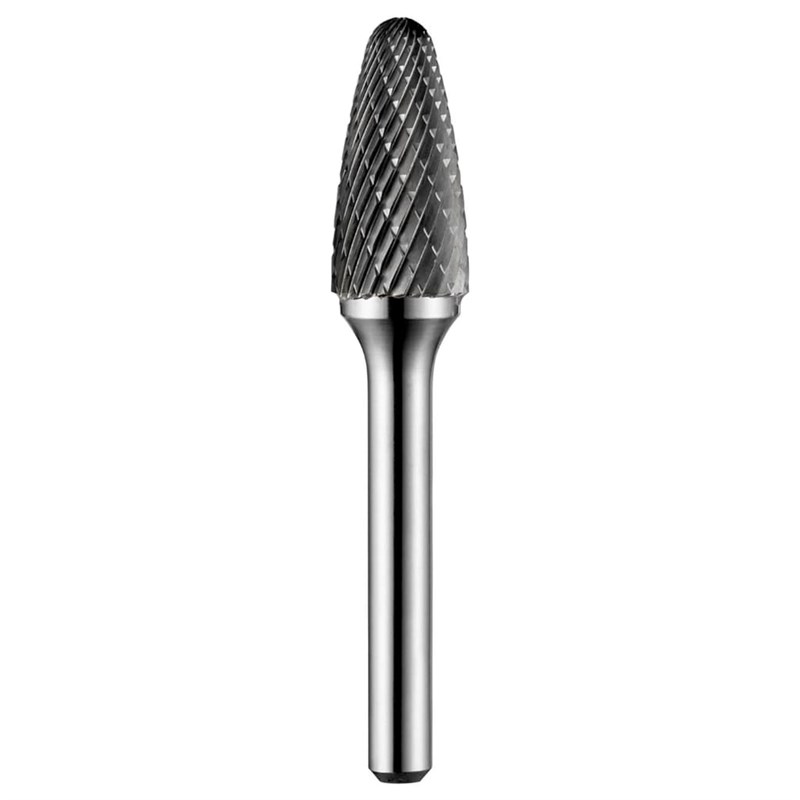

The Dormer P8119.6X6.0 Ball Nosed Tree Rotary Burr is a precision cutting tool designed for shaping, grinding, and finishing in metalworking applications. Featuring a ball-nosed tree shape, it allows for smooth contouring and detail work on various materials. Built for durability and efficiency, this rotary burr is ideal for professional use in machining and fabrication tasks.
Features & Benefits
» Rounded tree burr (F shape) with 9.6mm diameter and 19mm cutting length, total length 64mm with 6mm shank
» Carbide tipped with toughened and hardened steel shank featuring bright, uncoated finish
» DC double cut flute style with close spaced edges for multi-angle contouring and edge rounding
» Suitable for cutting in hard-to-reach areas on materials including steel, cast steel, stainless steel, cast iron, copper, copper alloys, high-temperature alloys, and hardened materials
» Double cut geometry enhances cutting performance and precision
» Ideal for curved surface deburring and carving (primary use)
» Suitable for closed groove deburring, fillet radii deburring, and freehand deburring and carving
Technical Specifications
» Connection Diameter: 6mm
» Connection Diameter Tolerance Machine Side: h7
» Cutting Diameter: 9.6mm
» Overall Length: 64mm
» Cutting Length: 19mm
