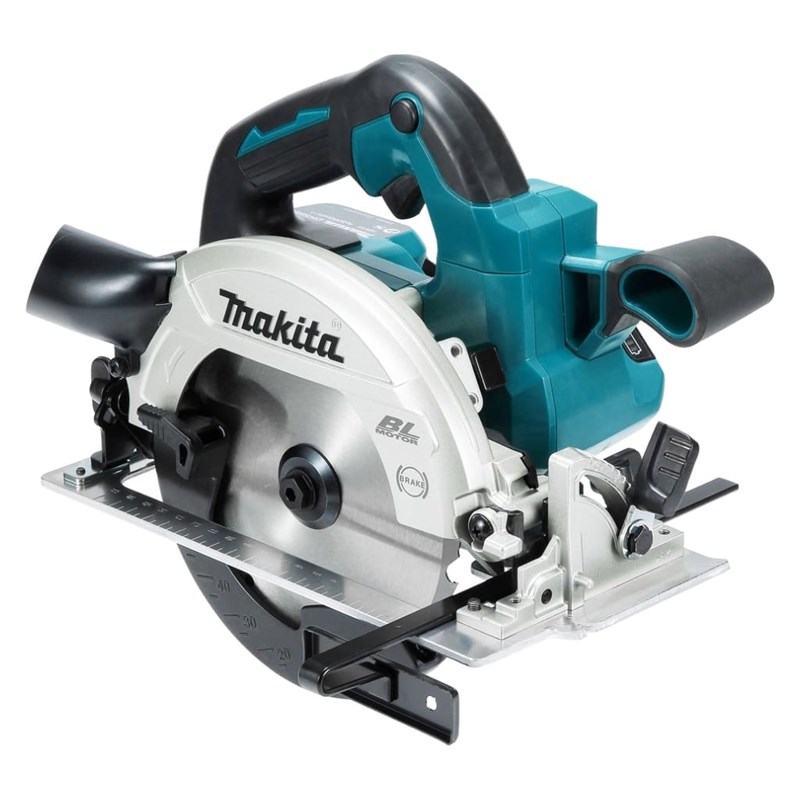

Circular Saw 165mm 18v B/O B/L DHS660Z Makita
SKU:
10103245
The Makita DHS660Z Circular Saw LXT (Body Only) is a lightweight and compact cordless saw engineered for precision and convenience on site. Powered by Makita’s 18V LXT lithium-ion battery platform, it features a brushless motor for increased efficiency and longer battery life. With a 165mm blade, easy bevel adjustment, and ergonomic design, this circular saw delivers smooth, accurate cuts and comfortable handling for professional tradespeople.
Features & Benefits
» Efficient and compact cordless circular saw with an electric brake, designed for professional wood cutting applications
» Accepts blades with a 165 mm diameter and achieves a maximum cutting depth of 57 mm
» Ventilation air is guided through the front to keep the cut line clear for precise results
» Integrated LED light provides additional illumination of the work area
» Compatible with a guide rule for improved cutting accuracy
» Brushless motor is maintenance-free and ensures a long service life
» Removable dust extraction connection helps maintain a cleaner workspace
» Electric brake maximises productivity and enhances operator safety by stopping the blade quickly
» ADT (Automatic Torque Drive Technology) automatically adjusts speed and torque during operation for optimum performance
» Built-in dust blower clears the line of cut for greater accuracy
» Electronic overload protection safeguards both the user and the tool
» Battery protection system automatically shuts off power when the battery level is low to preserve battery life
Please Note: This is a body-only tool and does not include any batteries or charger, these are sold separately.
Technical Specifications
» Nominal Battery Voltage: 18 V
» Voltage LXT: Yes
» Maximum Cutting Depth at 90°: 57 mm
» Maximum Cutting Depth at 45°: 41 mm
» Maximum Cutting Depth at 50°: 37 mm
» No Load Speed: 5000 min⁻¹
» Sound Power Level (LWA): 104 dB(A)
» Sound Pressure Level (LpA): 96 dB(A)
» Noise Uncertainty (K Factor): 3 dB(A)
» Tool Weight with Battery: 2.9 - 3.2 kg
» Product Dimensions (L x W x H): 270 x 186 x 250 mm
» Brushless Motor: Yes
» Battery Chemistry (Ni-Cd / Ni-MH / Li-ion): Li-ion
» Maximum Bevel Range (Right): 0 - 50º
» Blade Diameter: 165 mm
» Bore Size (Arbour Diameter): 20 mm
» Electronic Brake: Yes
» Vibration Level, Cutting Wood: ≤ 2.5 m/s²
» Vibration Uncertainty (K Factor), Cutting Wood: 1.5 m/s²
» Vacuum Cleaner Connection Ø (In / Out): 35 / 40 mm
