Drill Magnetic Kit V35 110v A023 850035-110 HMT
SKU:
10108362

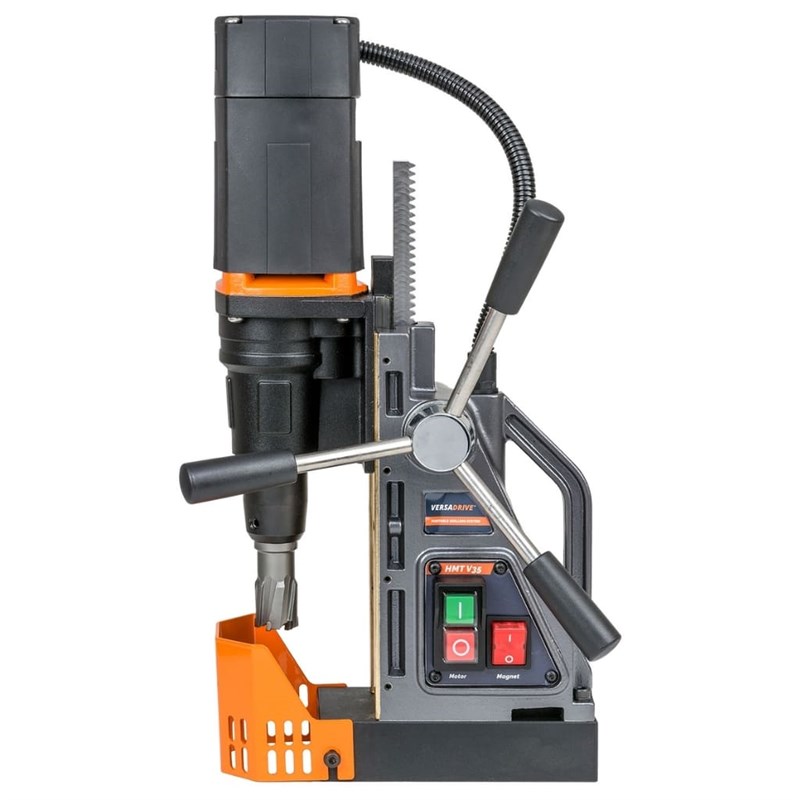

The HoleMaker Technology 850035-110 VersaDrive V35 Magnet Drill is a compact and powerful magnetic drilling machine designed for precision and performance in demanding metalworking tasks. Operating on 110V, it features a robust motor and strong magnetic base for stable and accurate drilling. Compatible with the VersaDrive system, it allows for quick-change tooling and efficient cutting in steel and other tough materials, making it ideal for construction, fabrication, and engineering applications.
Features & Benefits
» The first UK-built portable drilling machine designed for high-performance, low-maintenance industrial use
» Capable of drilling up to 35mm diameter with exceptional precision and durability
» Features a 140mm stroke and supports a maximum cutter length of 110mm
» Seamless integration with the VersaDrive modular cutting system for unmatched versatility
» Recognised as the most versatile compact magnetic drill on the market
» Supplied complete with handles, heavy-duty metal guard system, VersaDrive Rapid-Lock adapter, STAKIT Base 200 Case, and gravity-fed coolant system for optimal performance and convenience
Technical Specifications
» Cutter Size Range: 12 - 35mm TCT
» Max. Cutter Capacity: 35mm TCT
» Max. Cutter Length: 110mm
» Twist Drill Capacity: 12mm
» Max. Tap Capacity: N/A
» Max. Countersinking: 25mm
» Length: 220mm
» Width (Including Handles): 173mm
» Height (Min–Max): 305 – 445mm
» Stroke: 140mm
» Weight: 9.5 kg
» Magnet (L x W): 160 x 80mm
» Magnetic Adhesion: 1000 kg
» Motor Power: 850W
» Total Power: 900W
» Speed RPM (No Load): 750 min⁻¹
» Spindle: 3/4" Weldon
» Arbor: Integral ¾" Weldon
» Coolant System: Gravity Oil Fed
