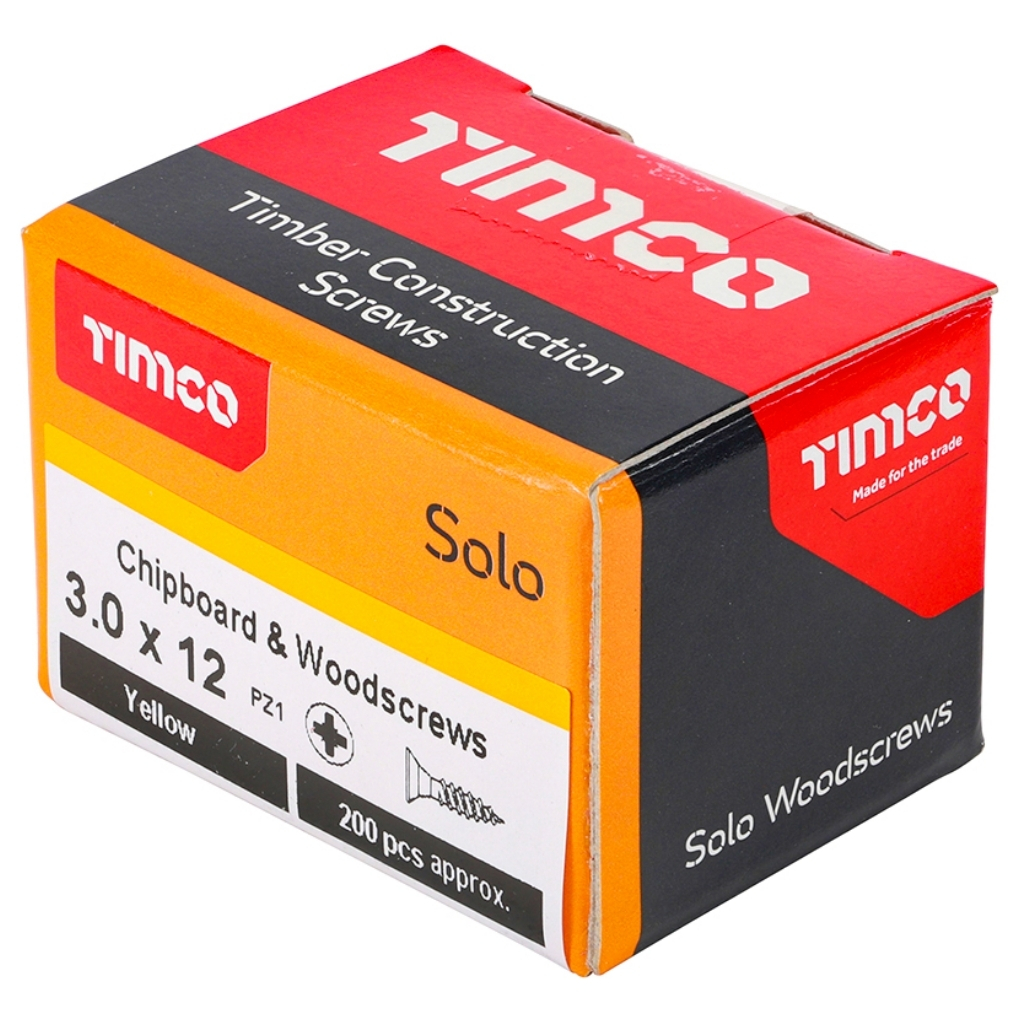

Woodscrew PZ1 3x12mm (Box 200) 30012SOLOC
SKU:
10110065

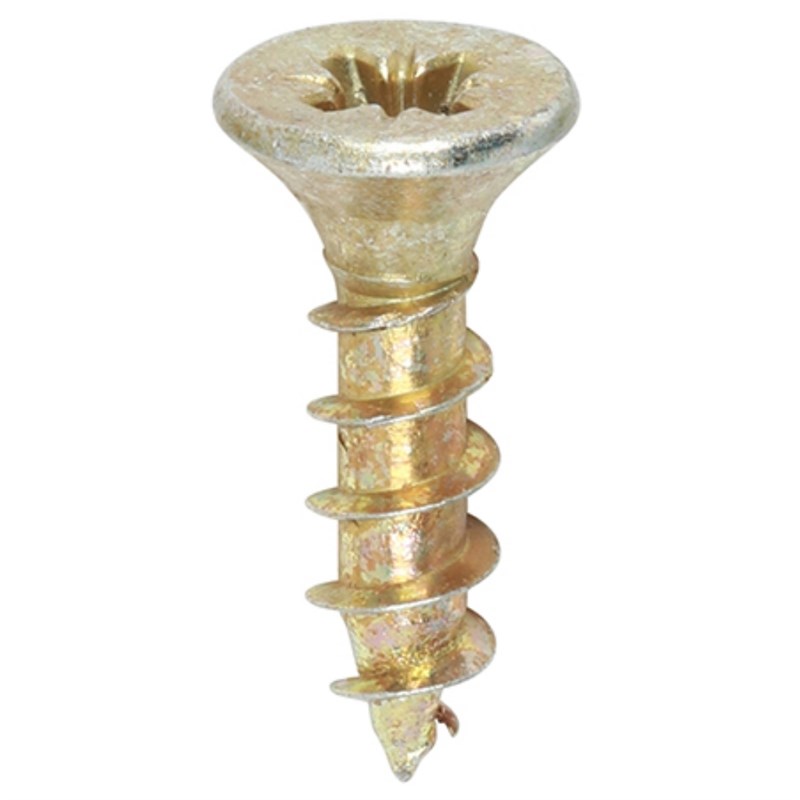

The TIMCO 30012SOLOC Solo Chipboard & Woodscrew is a versatile single thread fixing designed for use in timber, man-made boards and masonry with a plastic plug. It highlights fast insertion and strong holding power with a sharp point and deep thread, while the wax lubrication improves driving performance and corrosion resistance. Ideal for general construction and joinery applications requiring reliable and efficient fixing.
Features & Benefits
» Designed for use in timber, chipboard, MDF and masonry when paired with a plastic plug for versatile applications
» Double countersunk head reduces the likelihood of head shear and ensures a neat, flush finish
» Wax lubricated coating improves insertion speed, reduces driving torque and enhances corrosion resistance
» Deep 40° single thread provides strong grip and high pull-out resistance in a variety of materials
» Sharp 25° point and single lead thread enable a fast start and improved thread acceptance
» Fully threaded up to 75mm and extended 70mm thread on longer lengths for consistent fixing performance
Technical Specifications
» Corrosion Rating (1-5): 1 - Clean, Dry & Low Humidity Environments
» Driver Bit Size: PZ1
» Finish: Zinc & Yellow
» Gauge: 4
» Head Ø: 5.82mm
» Head Type: Double Countersunk
» Inner Thread Ø D1: 2mm
» Length (Inch): 1⁄2
» Length (Mm): 12mm
» Lubrication: Wax
» Material: Carbon Steel
» Pack Quantity: 200 Pieces
» Pack Type: Box
» Point Type: 25° Sharp
» Recess Type: Pozi
» Size (Imp.): 4 x 1⁄2
» Size (Mm): 3.0 x 12
» Substrates: Softwood, Chipboard, MDF, Masonry (With Plug)
» Thread Coverage: Fully Threaded
» Thread Length: 7mm
» Thread Ø: 3mm
» Thread Type: 40° Single Deep
