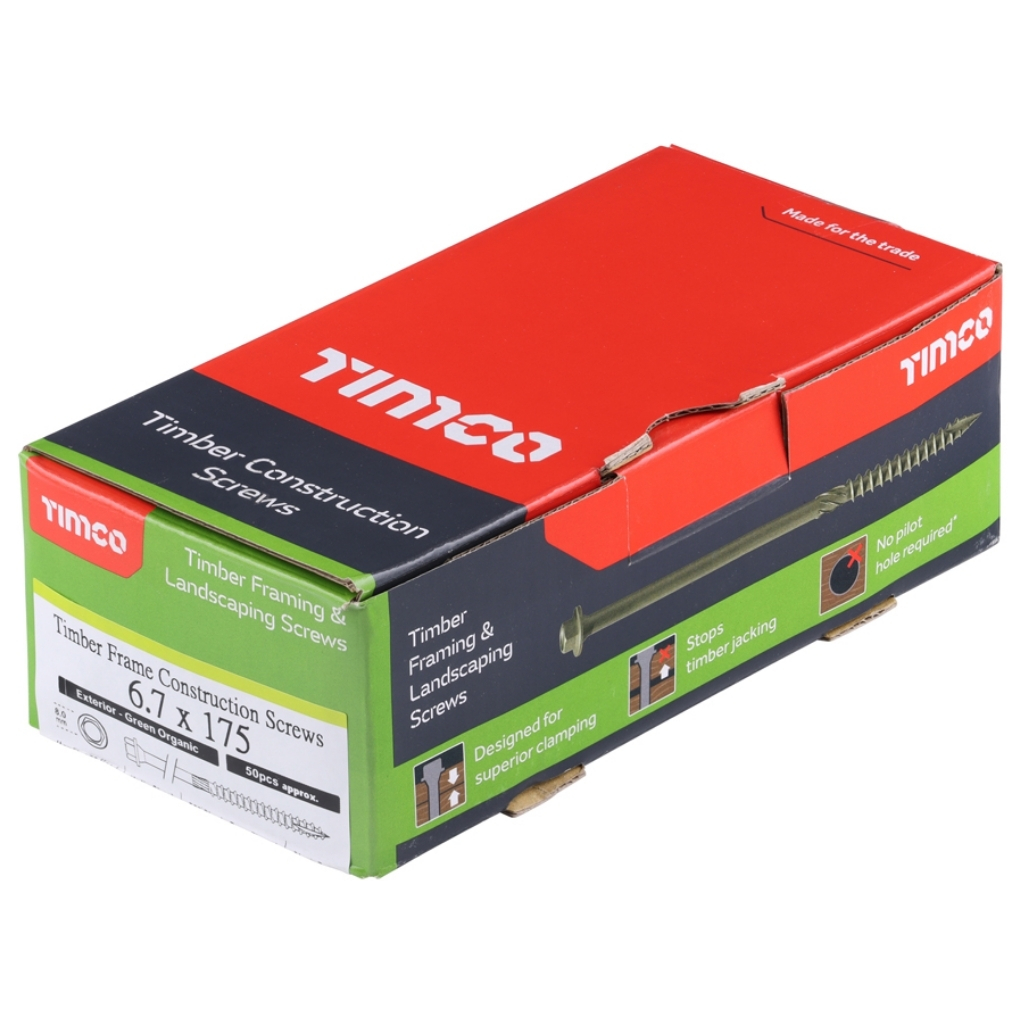

Frame Screw Timber Hex Green 6.7x175 (Box 50)
SKU:
10110330

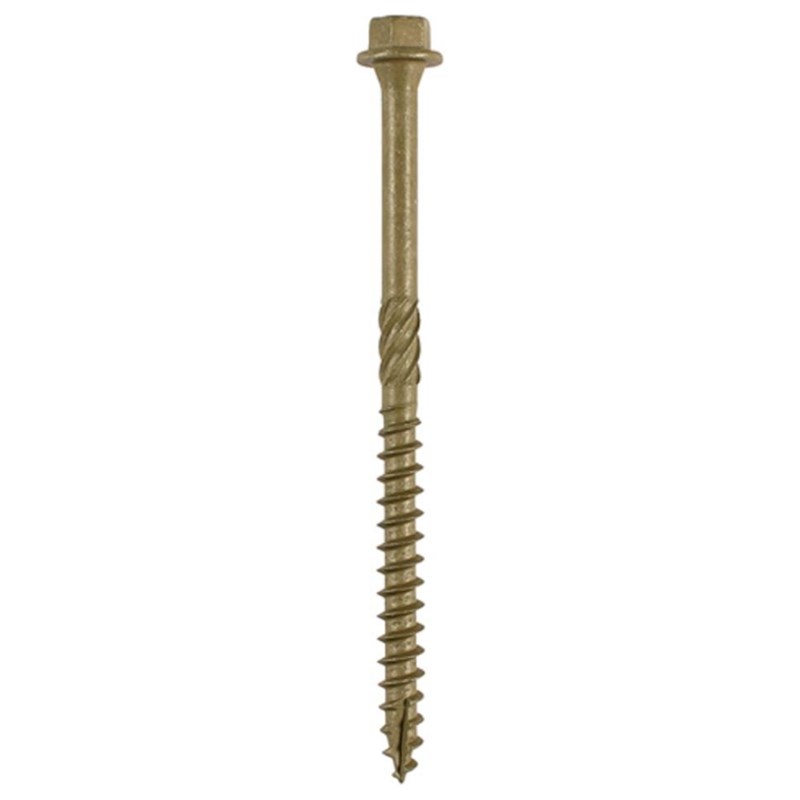

The TIMCO 175IN Green Organic Exterior Hex Timber Frame Screw is a high-strength alternative to traditional coach screws, engineered for demanding timber to timber applications. It highlights a patented multi-layer corrosion resistant plating tested to withstand up to 1,000 hours salt spray, making it well suited to exposed external conditions. Designed for durability and efficient driving performance, it delivers secure structural fixings in larger timber projects.
Features & Benefits
» Designed as a robust alternative to traditional coach screws for timber to timber construction
» Multi-layer corrosion resistant plating withstands up to 1,000 hours salt spray in accordance with BS EN 9227:2012
» Hex head countersunk design with fixed washer ensures strong clamping and a professional finish
» Patented lubrication enhances insertion speed while improving resistance to corrosion
» Helix shank helps remove debris during installation and improves clamping efficiency
» 50° deep single thread provides high pull-out resistance for secure structural fixings
» Single slash point reduces driving torque and minimises the risk of timber splitting at low edge distances
» 25° sharp point and single lead enable a fast start with improved thread engagement
Technical Specifications
» CE Standard: BS EN 14592:2008
» Corrosion Rating (1-5): 3 - Urban & Industrial Areas With A Low Salt Atmosphere
» Finish: Exterior (Green Organic)
» Head Type: Hex Flange
» Material: Carbon Steel
» Pack Quantity: 50
» Pack Type: Box
» Point Type: 25° Sharp With Single Slash
» Recess Type: External Hex
» Size: 6.7 x 175mm
» Thread Length: 52mm
» Thread Type: 50° Single Deep
