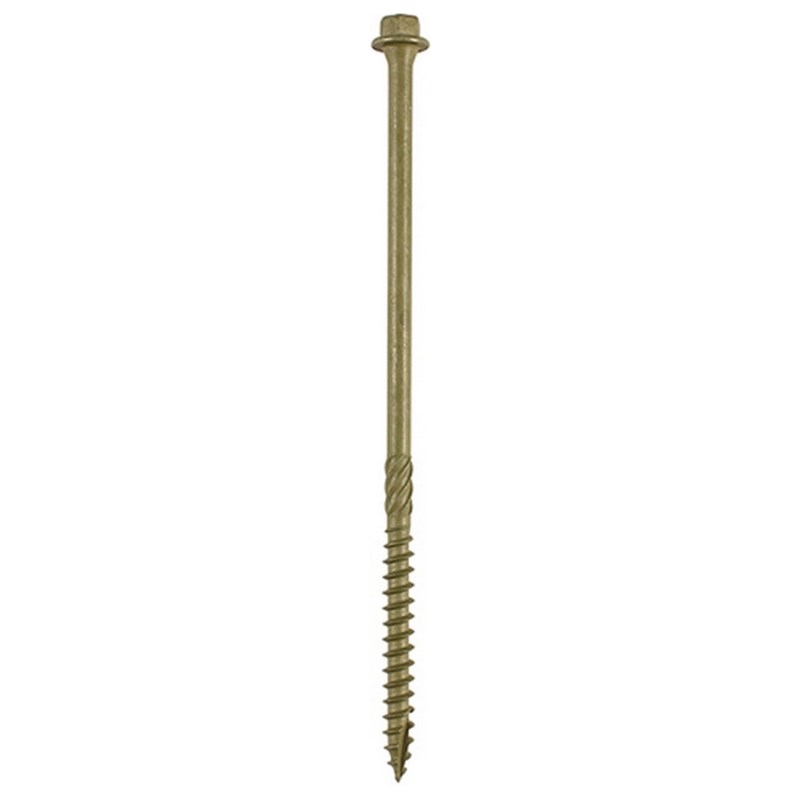

Frame Screw Timber Hex Green 6.7x200 (Box 50)
SKU:
10110331
The TIMCO 200IN Green Organic Exterior Hex Timber Frame Screw is a heavy-duty alternative to traditional coach screws, designed for secure timber to timber structural applications. It highlights a patented multi-layer corrosion resistant plating tested to withstand up to 1,000 hours salt spray, making it ideal for demanding external environments. Engineered for strength, durability and efficient installation, it provides dependable performance in large-scale timber construction projects.
Features & Benefits
» Designed as a high-strength alternative to traditional coach screws for timber to timber fixing
» Multi-layer corrosion resistant plating withstands up to 1,000 hours salt spray in accordance with BS EN 9227:2012
» Hex head countersunk design with fixed washer ensures strong clamping force and a neat finish
» Patented lubrication enhances insertion speed while increasing long-term corrosion resistance
» Helix shank assists with debris removal and improves overall clamping performance
» 50° deep single thread delivers high pull-out resistance for secure structural fixings
» Single slash point reduces driving torque and helps minimise timber splitting at low edge distances
» 25° sharp point and single lead enable a fast start and improved thread engagement
Technical Specifications
» CE Standard: BS EN 14592:2008
» Corrosion Rating (1-5): 3 - Urban & Industrial Areas With A Low Salt Atmosphere
» Finish: Exterior (Green Organic)
» Head Type: Hex Flange
» Material: Carbon Steel
» Pack Quantity: 50
» Pack Type: Box
» Point Type: 25° Sharp With Single Slash
» Recess Type: External Hex
» Size: 6.7 x 200mm
» Thread Length: 52mm
» Thread Type: 50° Single Deep
