Frame Screw Timber Wafer Green 6.7x175 (Box 50)
SKU:
10110339

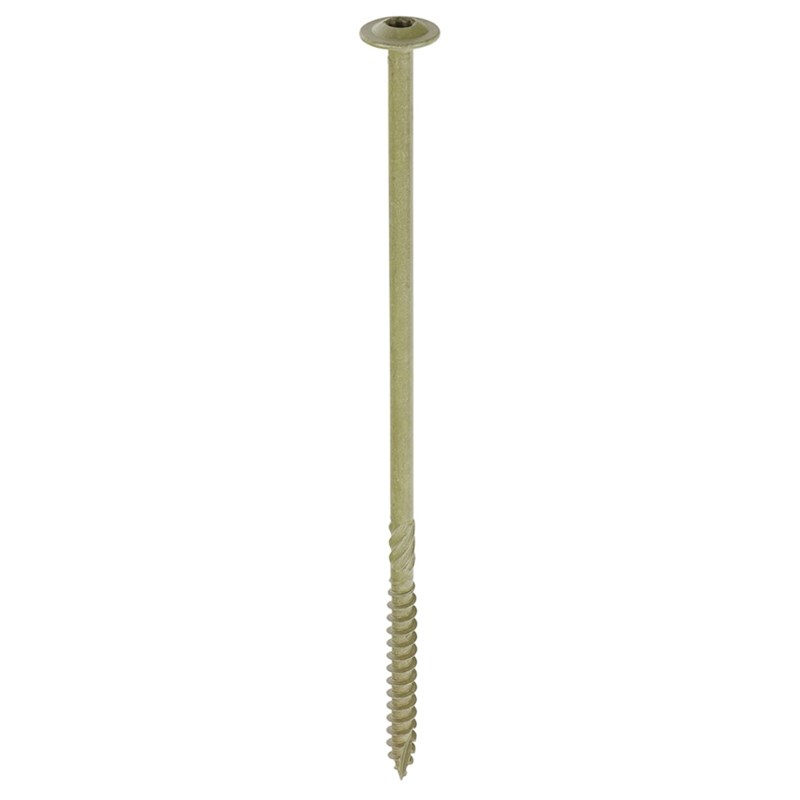

The TIMCO 175INW Green Organic Exterior Wafer Timber Frame Screw is a high-strength alternative to traditional coach screws, designed for secure timber to timber structural applications. It highlights a wafer head design for enhanced clamping and a low profile finish, alongside a patented multi-layer corrosion resistant plating tested to withstand up to 1,000 hours salt spray. Ideal for external environments, it provides durable and efficient fixing performance in demanding timber projects.
Features & Benefits
» Designed as a durable alternative to traditional coach screws for timber to timber construction
» Wafer head countersunk design with TX30 recess provides improved clamping and a neat low profile finish
» Multi-layer corrosion resistant plating withstands up to 1,000 hours salt spray in accordance with BS EN 9227:2012
» Patented lubrication enhances insertion speed while improving long-term corrosion resistance
» Helix shank assists with debris removal and improves overall clamping efficiency
» 50° deep single thread delivers high pull-out resistance for secure structural fixings
» Single slash point reduces driving torque and helps minimise timber splitting at low edge distances
» 25° sharp point and single lead enable a fast start and improved thread engagement
Technical Specifications
» CE Standard: BS EN 14592:2008
» Corrosion Rating (1-5): 3 - Urban & Industrial Areas With A Low Salt Atmosphere
» Driver Bit Size: TX30
» Finish: Exterior (Green Organic)
» Head Type: Wafer
» Included Items: TX30 S2 Bit (Quantity 1)
» Material: Carbon Steel
» Pack Quantity: 50
» Pack Type: Box
» Point Type: 25° Sharp With Single Slash
» Recess Type: TX Drive
» Size: 6.7 x 175mm
» Thread Length: 52mm
» Thread Type: 50° Single Deep
