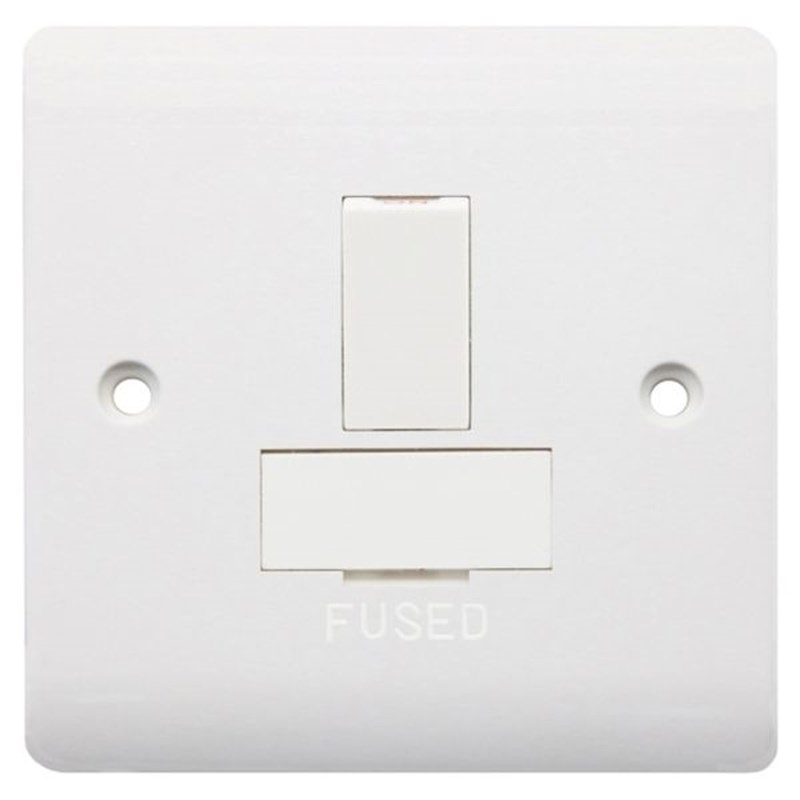

Fused Spur Switched 1Gang Double Pole 554542
SKU:
10120862
The Securlec SL9560 1 Gang Switched Fused Spur Double Pole 13 Amp is a high-quality, reliable electrical component designed for domestic and commercial use. It features a single gang design with a switched fused spur, making it ideal for isolating and protecting appliances and circuits.
Features & Benefits
» 13 Amp Rating: Suitable for standard electrical appliances and devices
» Double Pole Switching: Ensures both live and neutral wires are switched for enhanced safety
» Fused Protection: Provides circuit protection with a built-in fuse, reducing the risk of electrical faults
» Single Gang Design: Compact and easy to install in standard back boxes
» Quality Construction: Durable and built to last with a robust finish
» Versatile Use: Perfect for use with fixed appliances like boilers, immersion heaters, and other high-power devices
» Compliant with Regulations: Meets UK electrical standards for safety and reliability
Technical Specifications
» Associated Standards: BS 1363-4
» Rated Voltage: 250V
» Rated Current: 13A
» Frequency: 50-60Hz
» Wiring System: 2 Pole
» Min. Switch Contact Gap: >3 mm
» Ambient Operating Temperature: -5 to 40°C (24 Hour Average Not Exceeding 25°C)
» Degree of Protection: IP20
» Terminal Capacity: 3 x 2.5mm² or 3 x 4mm² or 1 x 6mm²
» Face Plate Material: Urea-Formaldehyde
» Minimum Wall Box Depth: 25mm
» Nature of Supply: AC
» Fixing Screws: M3.5 x 25mm
