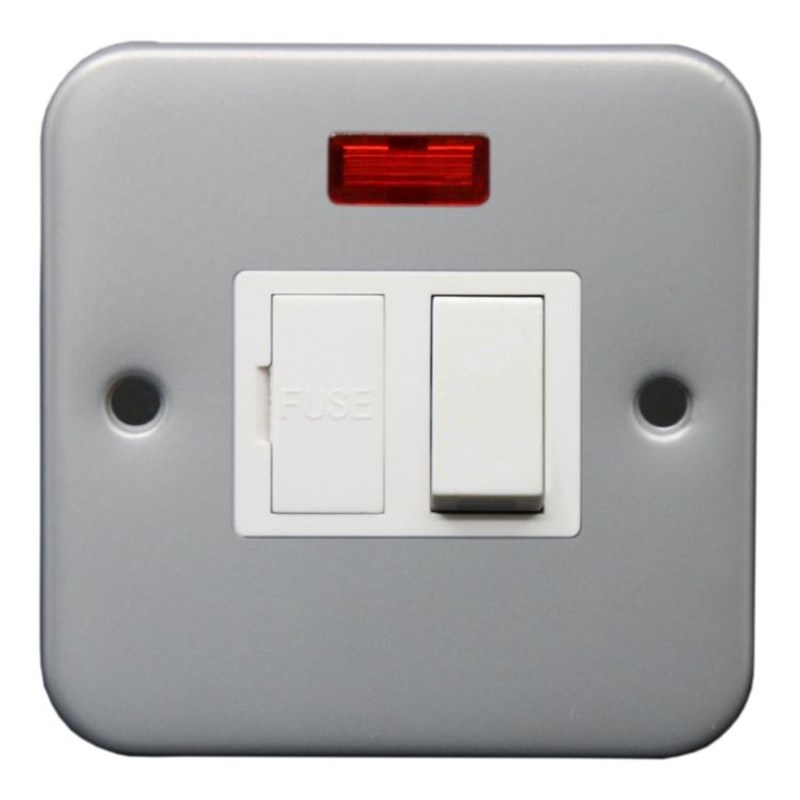

Switched Spur 1 Gang Neon Metal Cald 390361
SKU:
10120868
The Securlec SL9587 Metal Clad 1 Gang Switched Spur with Neon is a high-quality and durable electrical switch designed for controlling and isolating electrical circuits. This switched spur with a neon indicator is ideal for isolating and controlling circuits in areas that require enhanced durability, such as workshops, garages, or industrial settings.
Features & Benefits
» Metal Clad Design: Offers enhanced protection and durability, ideal for harsh environments
» 1 Gang Design: Controls a single appliance or circuit
» Switched Spur: Allows for the isolation of appliances, providing greater control and safety
» Neon Indicator: Equipped with a neon light to show when the circuit is live, providing a visual indication
» 13 Amp Rating: Suitable for a range of household and commercial appliances
» Robust Construction: Built with high-quality materials for long-lasting use in industrial and commercial settings
» Easy Installation: Fits standard back boxes for quick and straightforward installation
» Compliant with UK Standards: Meets all necessary safety and performance regulations
Technical Specifications
» Associated Standards: BS 1363-4
» Rated Voltage: 250V
» Rated Current: 13A
» Frequency: 50-60Hz
» Wiring System: 2 Pole
» Min. Switch Contact Gap: >3 mm
» Ambient Operating Temperature: -5 to 40°C (24 Hour Average Not Exceeding 25°C)
» Degree of Protection: IP20
» Terminal Capacity: 3 x 2.5mm² or 3 x 4mm² or 1 x 6mm²
» Face Plate Material: Metal
» Minimum Wall Box Depth: 25
» Nature of Supply: AC
» Fixing Screws: M3.5 x 30mm
