Regulator Inert 2 Stage 2G 10Bar B/Entry GAS0021
SKU:
10025248

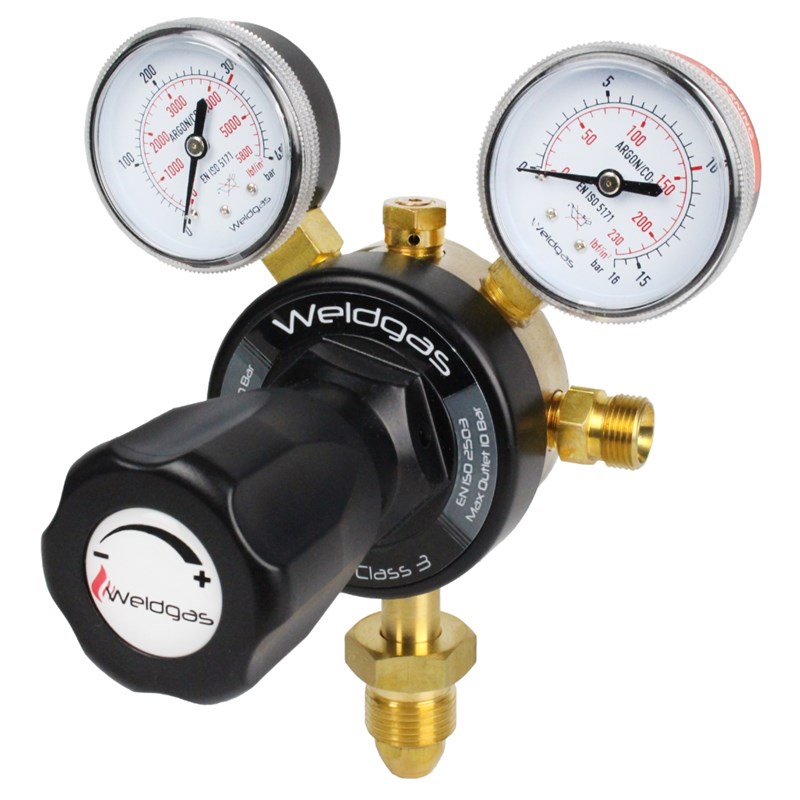

The Weldgas GAS0021 Multi-Stage 2 Gauge Argon/CO2 Regulator is a heavy-duty industrial gas regulator designed for accurate and stable shielding gas delivery in MIG and TIG welding applications. Featuring a two-stage pressure reduction system, twin 50mm gauges and a 0–10bar outlet pressure range, it provides consistent regulation as cylinder pressure decreases.
Features & Benefits
» Professional two-stage regulator designed for demanding MIG and TIG welding applications
» Suitable for pure argon and Argon/CO2 shielding gas mixtures
» Two-stage pressure reduction provides stable outlet pressure as cylinder contents and inlet pressure decrease
» Twin 50mm gauges clearly display cylinder contents pressure and regulated outlet pressure
» Maximum 300bar inlet pressure makes the regulator suitable for compatible high-pressure gas cylinders
» Adjustable 0–10bar outlet pressure provides controlled gas delivery for a variety of welding requirements
» Base-entry configuration is designed for compatible cylinders with vertically positioned outlet valves
» Precision-machined forged brass body provides robust construction for heavy-duty industrial environments
» Finned body construction assists heat transfer and helps reduce cooling effects caused by continuous gas expansion
» Integrated pressure relief valve provides protection against excessive downstream pressure
» Ergonomic ABS adjustment handwheel provides straightforward outlet pressure control
» Manufactured and tested in accordance with EN ISO 2503 with gauges complying with EN ISO 5171
Technical Specifications
» Brand: Weldgas
» Manufacturer Part Number: GAS0021
» Product Type: Argon/CO2 Gas Regulator
» Regulator Type: Two Stage
» Number Of Gauges: 2
» Compatible Gases: Argon And Argon/CO2 Mixtures
» Maximum Inlet Pressure: 300bar
» Outlet Pressure Range: 0–10bar
» Entry Configuration: Base / Bottom Entry
» Inlet Connection: BS 341 No. 3
» Inlet Thread: G 5/8in BSP Right-Hand
» Outlet Connection: G 3/8in BSP Right-Hand Male
» Gauge Diameter: 50mm
» Gauge Functions: Cylinder Contents Pressure And Regulated Outlet Pressure
» Body Material: Forged Brass
» Body Design: Finned Heat-Dissipating Profile
» Handwheel Material: ABS Plastic
» Safety Device: Pressure Relief Valve
» Regulator Standard: EN ISO 2503
» Gauge Standard: EN ISO 5171
» Warranty: 2 Years
