Tig Torch WP26FX-25R SSW 1 Piece Binzel
SKU:
10025034

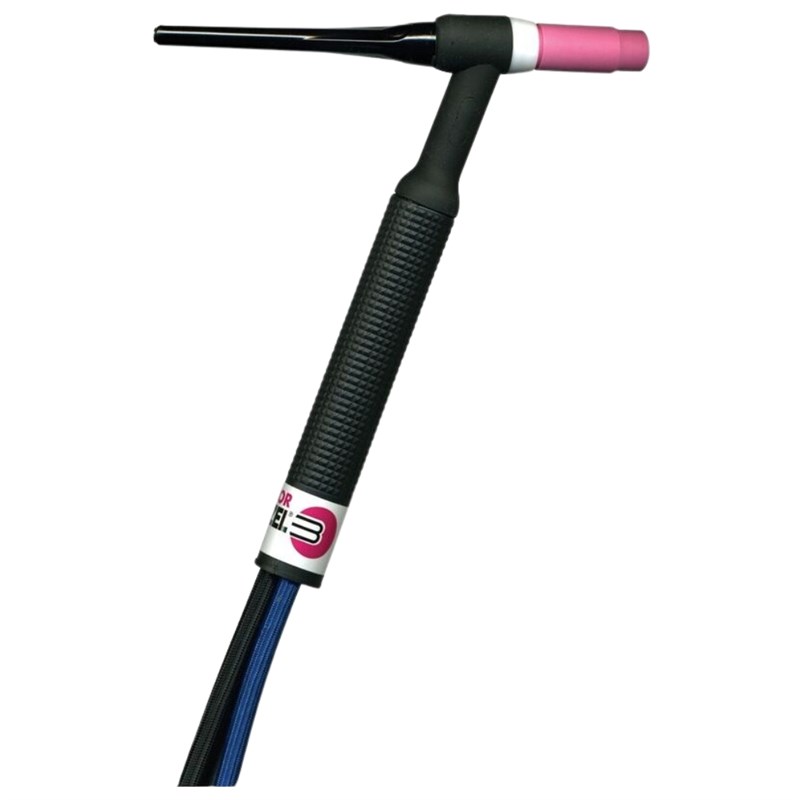

The Abicor Binzel WP26FX-25R SSW 1-Piece TIG Welding Torch is a heavy-duty air-cooled torch package designed for professional TIG welding in demanding and restricted working positions. Its flexible WP26-series head can be manually adjusted for improved joint access, while the 25ft high-flexibility rubber monocable combines shielding gas and electrical current within a compact single-cable assembly. Rated up to 200A DC at 60% duty cycle, the torch also features an integrated single-switch handle for convenient remote control of compatible welding equipment.
Features & Benefits
» Heavy-duty air-cooled TIG torch designed for professional fabrication, maintenance and industrial welding applications
» Flexible neck can be manually adjusted to improve access to restricted joints, structural corners and complex workpiece geometries
» Rated up to 200A DC and 150A AC at a 60% duty cycle
» 25ft cable assembly provides excellent working reach around large components and fabrication areas
» 1-piece monocable design carries shielding gas and welding current through a compact combined cable assembly
» Gas-through-power construction helps reduce the bulk associated with conventional multi-line air-cooled torch arrangements
» High-flexibility rubber cable provides excellent resistance to kinking, workshop wear and demanding temperature conditions
» Integrated single-switch handle provides convenient remote activation of compatible welding equipment
» Supports tungsten electrodes from 0.5mm to 4.0mm for excellent application versatility
» Compatible with widely available 17, 18 and 26-series TIG front-end consumables
» Supports standard collet, collet body, stubby and gas lens configurations for flexible torch setup
» Protective outer covering helps safeguard the cable assembly against general workshop wear and damage
Technical Specifications
» Brand: Abicor Binzel
» Product Type: Air-Cooled TIG Welding Torch
» Model: WP26FX-25R SSW
» Torch Series: WP26
» Cooling Type: Air / Gas-Cooled
» Torch Head Style: Flexible / Bendable Neck
» Maximum DC Rating: 200A At 60% Duty Cycle
» Maximum AC Rating: 150A At 60% Duty Cycle
» Cable Length: 25ft / Approximately 7.6m
» Cable Construction: 1-Piece Monocable
» Cable Configuration: Gas-Through-Power
» Power Cable Material: High-Flexibility Rubber
» Switch Type: Single-Switch / SSW
» Electrode Diameter Capacity: 0.5mm To 4.0mm
» Rear Connection: 3/8" BSP Right-Hand Female
» Consumable Compatibility: Standard 17 / 18 / 26 Series TIG Consumables
» Welding Process: TIG / GTAW
» Standard: EN 60974-7
