Regulator Butane Clip-on R801 Calor
SKU:
10074356

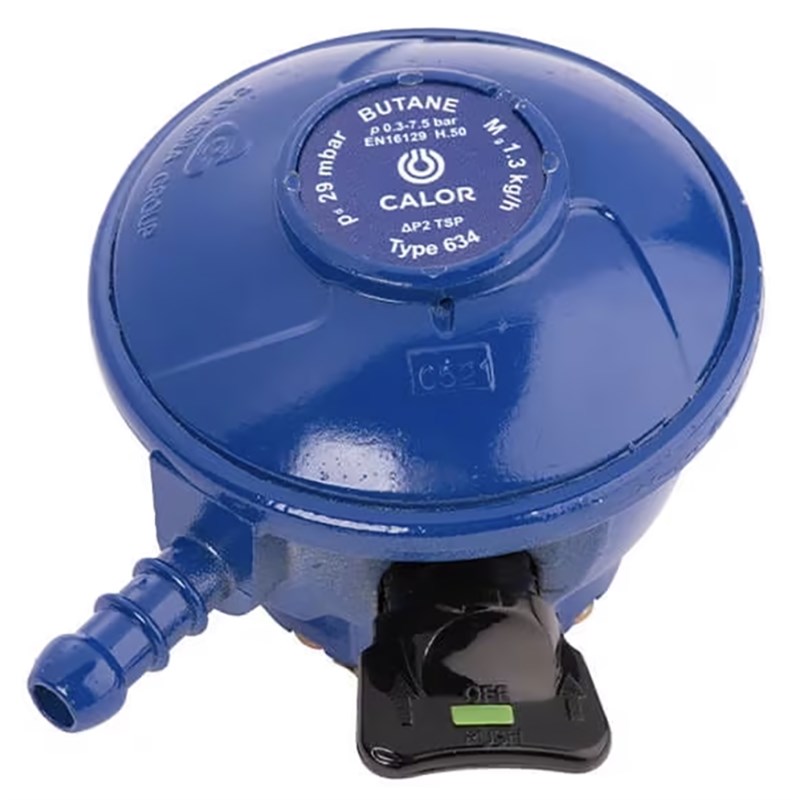

The Calor R801 21mm Butane Clip-On Gas Regulator is a low-pressure single-stage regulator designed for use with compatible butane gas cylinders and appliances. Featuring a tool-free 21mm clip-on connection, integrated on/off control and a 29mbar operating pressure, it provides convenient and controlled gas delivery for domestic and recreational applications.
Features & Benefits
» Low-pressure single-stage regulator designed specifically for butane gas applications
» 21mm quick-release clip-on connection provides straightforward tool-free attachment to compatible cylinders
» Factory-set 29mbar outlet pressure provides controlled gas delivery to compatible low-pressure appliances
» Integrated on/off control lever allows the gas supply to be conveniently isolated at the cylinder
» Visual red and green indicators provide clear indication of the regulator's on and off positions
» Safety interlock prevents connection or removal from the cylinder unless the regulator is switched to the off position
» Integrated excess flow safety device automatically restricts gas flow in the event of significant downstream leakage or hose failure
» 8mm barbed hose outlet provides connection to compatible low-pressure LPG hose
» Suitable for compatible portable heaters, gas BBQs, patio heaters and caravan or camping appliances
» Designed for compatible Calor and other butane cylinders fitted with a 21mm clip-on valve
» Manufactured and tested in accordance with BS EN 16129
Technical Specifications
» Brand: Calor
» Model: R801
» Calor Product Code: 601225
» Product Type: Butane Gas Regulator
» Regulator Type: Low-Pressure Single Stage
» Gas Type: Butane
» Nominal Outlet Pressure: 29mbar
» Operating Pressure Range: 28–30mbar
» Nominal Flow Capacity: 1.3–1.5kg/hr
» Maximum Inlet Pressure: 7.5bar
» Operating Temperature Range: -20°C To +50°C
» Inlet Connection: 21mm Clip-On
» Inlet Interface: G.53
» Outlet Connection: 8mm Barbed Hose Nozzle
» Control Type: On/Off Lever
» Safety Feature: Connection Interlock
» Excess Flow Safety Device: Yes
» Compatible Calor Cylinders: 7kg And 15kg Butane
» Standard: BS EN 16129
