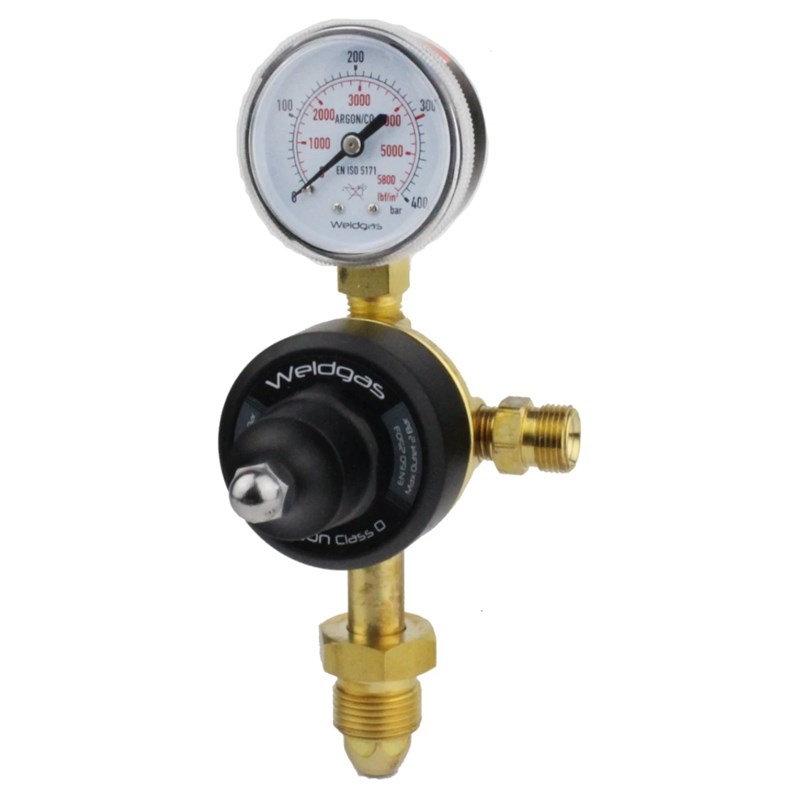

Regulator Argon Preset Single Gauge GAS1030
SKU:
10025249
The Weldgas GAS1030 Premium Preset Argon Regulator is a single-stage, single-gauge regulator designed for Argon and Argon/CO₂ shielding gas applications. Featuring a factory-set 2 bar outlet pressure, 300 bar maximum inlet rating and base-entry configuration, it provides a fixed gas supply for compatible downstream flowmeters and MIG/TIG welding systems.
Features & Benefits
» Single-stage preset regulator designed for Argon and compatible Argon/CO₂ shielding gas mixtures
» Factory-set 2 bar outlet pressure provides a consistent supply without requiring manual pressure adjustment
» Single 50mm gauge displays cylinder pressure while the delivery pressure remains preset
» Suitable for use with compatible downstream inline flowmeters to control shielding gas flow
» Rated for cylinder inlet pressures up to 300 bar for compatibility with modern high-pressure gas cylinders
» Base-entry configuration provides a practical connection arrangement for compatible shielding gas cylinders
» BS341 No. 3 inlet connection provides compatibility with appropriate UK Argon and shielding gas cylinder valves
» Encapsulated valve design provides controlled pressure regulation during welding operations
» Forged brass body and bonnet provide a durable construction for professional workshop and fabrication environments
» Suitable for MIG/MAG and TIG welding applications requiring a controlled Argon or Argon/CO₂ shielding gas supply
Technical Specifications
» Brand: Weldgas
» Product Range: Premium
» Product Code: GAS1030
» Product Type: Preset Argon Gas Regulator
» Regulator Type: Single Stage
» Gas Compatibility: Argon / Argon-CO₂ Mixtures
» Gauge Configuration: Single Gauge
» Gauge Diameter: 50mm
» Gauge Standard: ISO 5171
» Entry Configuration: Base / Bottom Entry
» Preset Outlet Pressure: 2 Bar
» Maximum Inlet Pressure: 300 Bar
» Inlet Connection: BS341 No. 3
» Inlet Thread: G 5/8" BSP Right-Hand Male
» Outlet Thread: G 3/8" BSP Right-Hand Male
» Valve Design: Encapsulated Valve
» Body Material: Forged Brass
» Standard: BS EN ISO 2503
» Application: MIG/MAG And TIG Shielding Gas Supply
