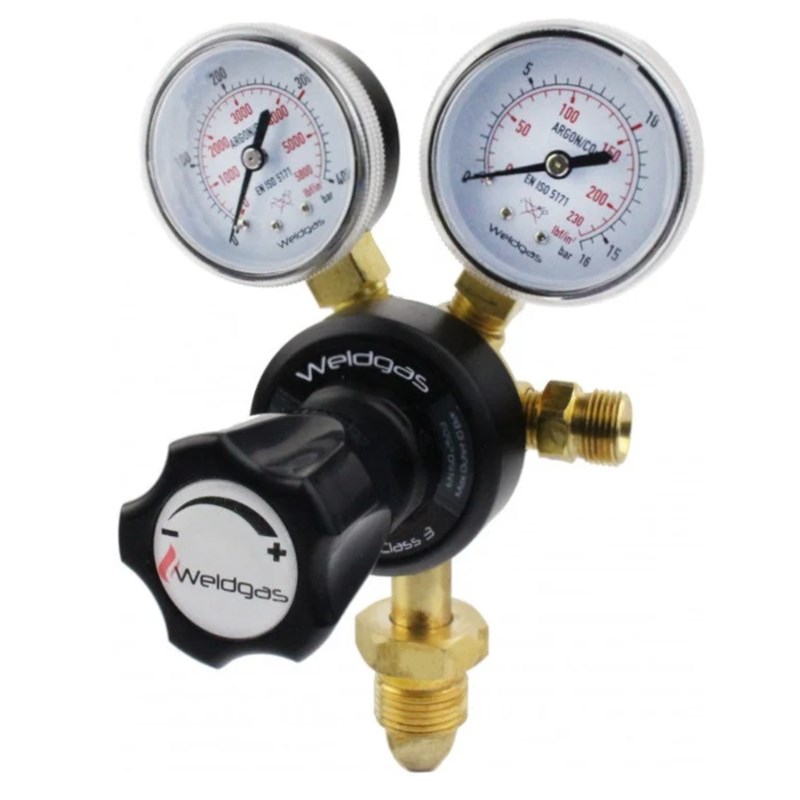

Regulator Argon Single Stage 2 Gauge GAS1027
SKU:
10025251
The Weldgas GAS1027 Single Stage 2 Gauge Argon Premium Regulator is a heavy-duty industrial gas regulator designed for controlled delivery of argon and Argon/CO2 shielding gases. Featuring dual 50mm gauges, a 0–35L/min flow range and a base-entry configuration, it provides reliable gas control for demanding MIG and TIG welding applications.
Features & Benefits
» Premium single-stage regulator designed for medium to heavy-duty industrial welding applications
» Suitable for pure argon and Argon/CO2 shielding gas mixtures used in MIG and TIG welding
» Base-entry configuration is designed for cylinders with compatible top-facing outlet valves
» Dual 50mm gauges provide clear indication of cylinder contents pressure and gas delivery flow
» Adjustable 0–35L/min outlet flow range provides controlled shielding gas delivery
» Rated for cylinder inlet pressures up to 300bar with a maximum outlet pressure capability of 10bar
» Encapsulated valve design with PCTFE/PTFE seating provides precise and consistent gas regulation
» Hot-forged brass body and bonnet provide robust construction for demanding industrial environments
» Fibre-reinforced neoprene diaphragm provides responsive pressure control and durability
» Integrated 10μm sintered bronze inlet filter helps prevent particulate contamination from reaching the valve seat
» Anti-tamper over-pressure relief valve provides additional protection against excessive outlet pressure
» Manufactured in accordance with BS EN ISO 2503 with gauges complying with ISO 5171
Technical Specifications
» Brand: Weldgas
» Manufacturer Part Number: GAS1027
» Product Type: Argon Premium Gas Regulator
» Regulator Type: Single Stage
» Service Classification: Medium / Heavy Duty
» Number Of Gauges: 2
» Compatible Gases: Argon And Argon/CO2 Mixtures
» Maximum Inlet Pressure: 300bar
» Maximum Outlet Pressure: 10bar
» Outlet Flow Range: 0–35L/min
» Entry Configuration: Base / Bottom Entry
» Inlet Connection: G 5/8in BSP Right-Hand Male
» Inlet Standard: BS 341 No. 3
» Outlet Connection: G 3/8in BSP Right-Hand Male
» Gauge Diameter: 50mm
» Gauge Functions: Cylinder Contents Pressure And Outlet Flow Rate
» Body Material: Hot-Forged Brass Alloy
» Bonnet Material: Hot-Forged Brass Alloy
» Diaphragm Material: Fibre-Reinforced Neoprene
» Valve Seat Material: PCTFE/PTFE
» Inlet Filter: 10μm Sintered Bronze
» Handwheel Material: ABS Plastic
» Safety Device: Over-Pressure Relief Valve
» Regulator Standard: BS EN ISO 2503
» Gauge Standard: ISO 5171
» Warranty: 3 Years
