Regulator Inert S Stage 2G 10Bar B/E GAS1028
SKU:
10025252

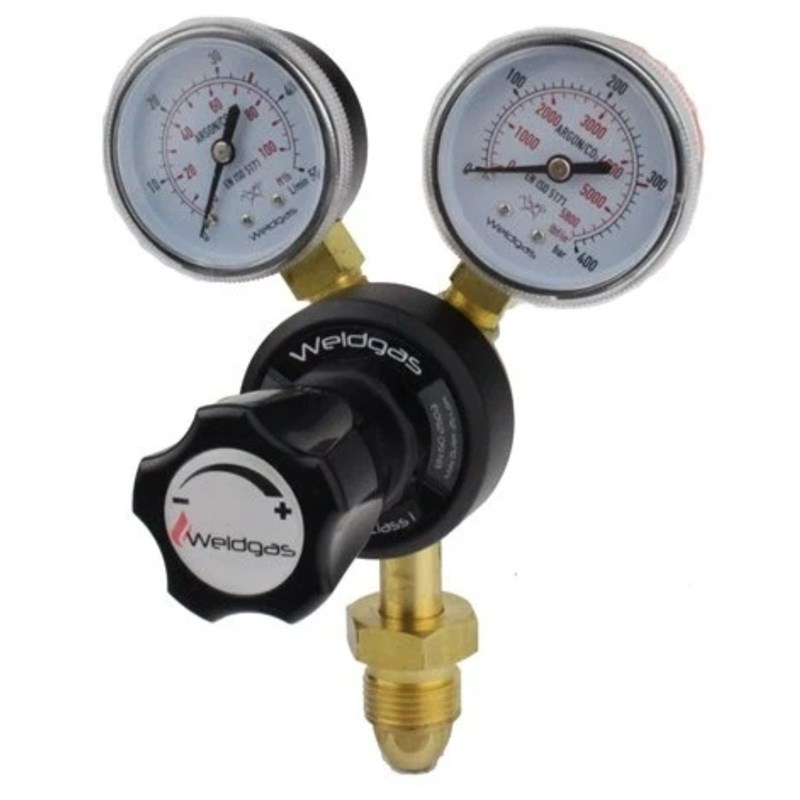

The Weldgas GAS1028 Single Stage 2 Gauge Argon/CO2 Regulator is a heavy-duty industrial gas regulator designed for controlled shielding gas delivery in MIG and TIG welding applications. Featuring twin 50mm gauges, a base-entry configuration and a 0–35L/min flow range, it provides reliable regulation for argon and compatible Argon/CO2 shielding gases.
Features & Benefits
» Heavy-duty single-stage regulator designed for professional MIG and TIG welding applications
» Suitable for argon and compatible Argon/CO2 shielding gas mixtures
» Single-stage internal regulation provides controlled reduction of high cylinder pressure for dependable gas delivery
» Twin 50mm high-contrast gauges provide clear indication of cylinder contents and gas delivery
» Base-entry configuration is designed for compatible cylinders with top-mounted outlet valves
» Rated for inlet pressures up to 300bar for use with compatible high-pressure industrial gas cylinders
» Adjustable 0–35L/min flow range supports a wide variety of shielding gas requirements
» Precision-machined hot-forged brass body provides robust construction for demanding industrial environments
» Internal sintered bronze filter helps prevent cylinder particulates from reaching the regulator valve mechanism
» Fibre-reinforced elastomer diaphragm provides responsive and stable pressure regulation
» Integrated pressure relief valve provides protection against excessive downstream pressure
» Manufactured in accordance with BS EN ISO 2503 with gauges conforming to ISO 5171
Technical Specifications
» Brand: Weldgas
» Manufacturer Part Number: GAS1028
» Product Type: Argon/CO2 Gas Regulator
» Regulator Type: Single Stage
» Number Of Gauges: 2
» Compatible Gases: Argon And Argon/CO2 Mixtures
» Maximum Inlet Pressure: 300bar
» Outlet Pressure Range: 0–10bar
» Outlet Flow Range: 0–35L/min
» Entry Configuration: Base / Bottom Entry
» Inlet Connection: BS 341 No. 3
» Inlet Thread: G 5/8in BSP Right-Hand Female
» Outlet Connection: G 3/8in BSP Right-Hand Male
» Gauge Diameter: 50mm
» Gauge Functions: Cylinder Contents And Gas Delivery
» Body Material: Hot-Forged Brass
» Inlet Filter: Sintered Bronze
» Diaphragm Material: Fibre-Reinforced Elastomer
» Handwheel Material: ABS Plastic
» Safety Device: Pressure Relief Valve
» Regulator Standard: BS EN ISO 2503
» Gauge Standard: ISO 5171
