Crimping Tool 5 Way 13656 Draper
SKU:
10000585

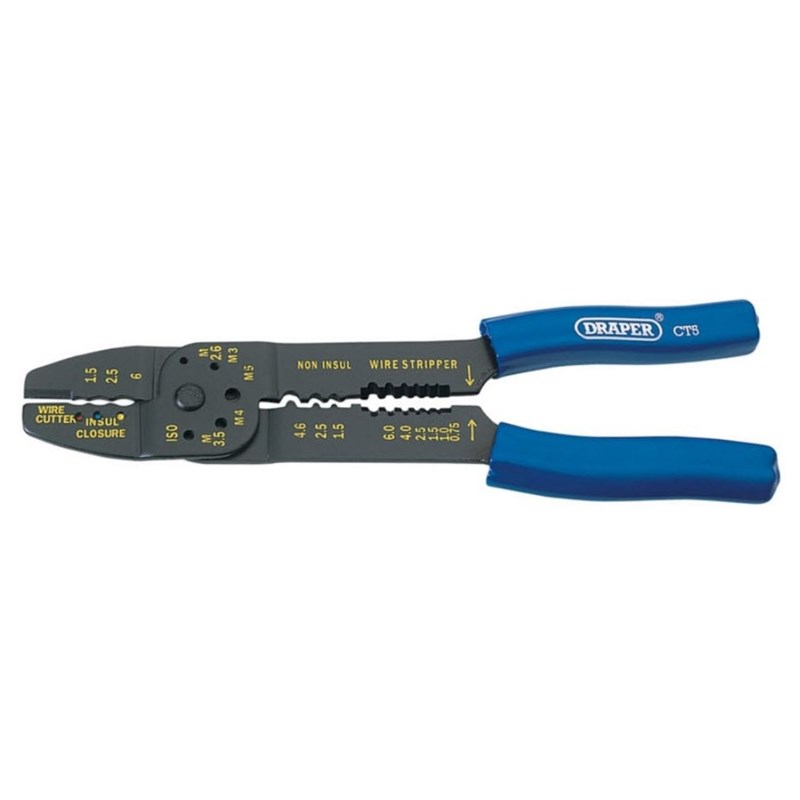

The Draper 13656 5 Way Crimping Tool, 230mm is a versatile multi-function electrical tool designed for crimping, stripping, cutting, and bolt shearing applications. It is manufactured from heavy gauge carbon steel that is hardened, tempered, and chemically blacked for durability and long service life. The moulded PVC grip handles provide comfort and control during extended use, making it suitable for professional electrical work.
Features & Benefits
» 5-in-1 multi-function tool for crimping, stripping, cutting, and shearing
» Hardened and tempered carbon steel construction for strength and durability
» Chemically blacked finish for improved corrosion resistance
» Moulded PVC grip handles for enhanced comfort and control
» Crimps insulated terminals: 0.5–1.0mm² (red), 1.5–2.5mm² (blue), 4.0–6.0mm² (yellow)
» Crimps non-insulated terminals: 1.5–6.0mm² range
» Wire stripping range: 0.75–6.0mm²
» Bolt shearing capability: 2.6–5.0mm bolts
» Integrated wire cutting function for added versatility
Technical Specifications
» Crimping Insulated Terminals Size: 1.5mm² (red), 2.5mm² (blue), 6.0mm² (yellow)
» Crimping Non-Insulated Terminals Size: 1.5mm², 2.5mm², 4.0mm², 6.0mm²
» Wire Stripping: 0.75, 1.0, 1.5, 2.5, 4.0, 6.0mm²
» Shears Bolts Size: 2.6, 3.0, 3.5, 4.0, 5.0mm
» Wire Cutting: Yes
