Flash Back Arrestor Oxygen GAS1015
SKU:
10025305

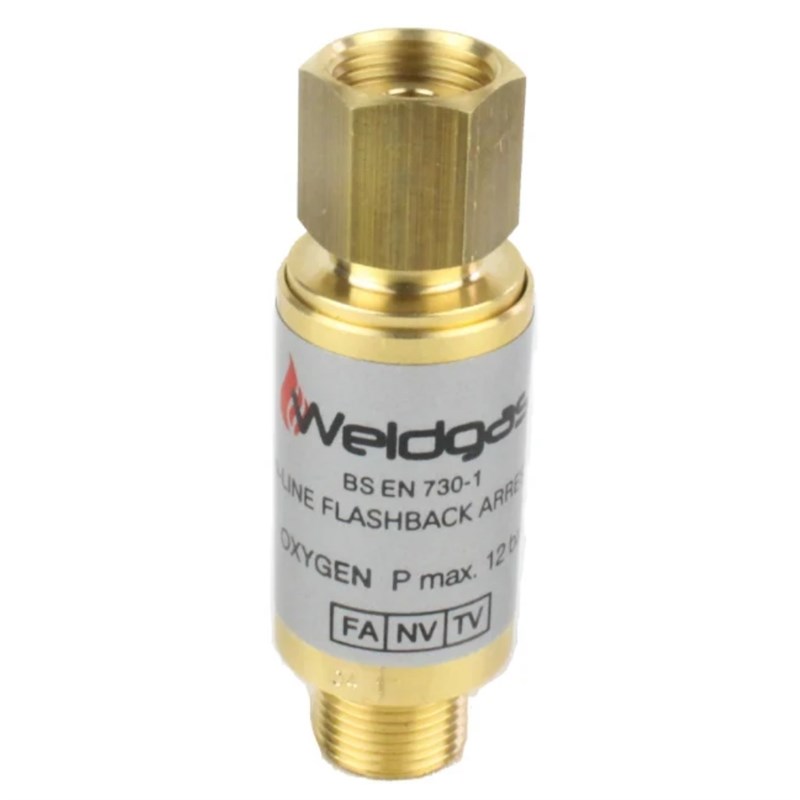

The Weldgas Regulator-Mounted Oxygen Flashback Arrestor GAS1015 / DF53N is a commercial-grade safety device designed to protect oxy-fuel equipment from flashbacks and reverse oxygen flow. Installed directly at the oxygen regulator outlet, it combines multiple automatic safety mechanisms to help stop flame propagation and isolate the gas supply under hazardous conditions.
Features & Benefits
» Integrated flame arrestor helps extinguish an advancing flame before it can travel upstream towards the regulator and cylinder
» Non-return valve prevents reverse gas flow and helps protect against dangerous cross-gas contamination
» Temperature-sensitive cut-off valve permanently stops gas delivery if excessive internal temperatures occur
» Non-resettable fail-safe design requires replacement following activation of the thermal cut-off
» Regulator-mounted configuration positions the safety device directly downstream of the oxygen regulator
» Sintered flame-arresting element rapidly absorbs heat to help quench flashbacks
» Integrated inlet filter helps prevent particulate contamination from affecting the internal safety mechanisms
» 3/8in BSP right-hand connection is designed for commonly used UK oxygen regulator and hose systems
» Suitable for oxygen systems used in oxy-fuel welding, cutting, brazing and heating applications
» Commercial-grade construction provides dependable protection in demanding fabrication and workshop environments
Technical Specifications
» Brand: Weldgas
» Part Number: GAS1015
» Model: DF53N
» Product Type: Oxygen Flashback Arrestor
» Mounting Type: Regulator Mounted / Inline
» Gas Compatibility: Oxygen
» Connection: 3/8in BSP Right-Hand
» Maximum Free Flow Rate: 187m³/h
» Maximum Operating Temperature: 70°C
» Flame Arrestor: Yes
» Non-Return Valve: Yes
» Temperature-Sensitive Cut-Off Valve: Yes
» Inlet Filter: Yes
» Reset Type: Non-Resettable
» Standard: BS EN ISO 5175-1
» Approvals: BAM / IBExU
