Flash Back Arrestor Fuel GAS1016
SKU:
10025306

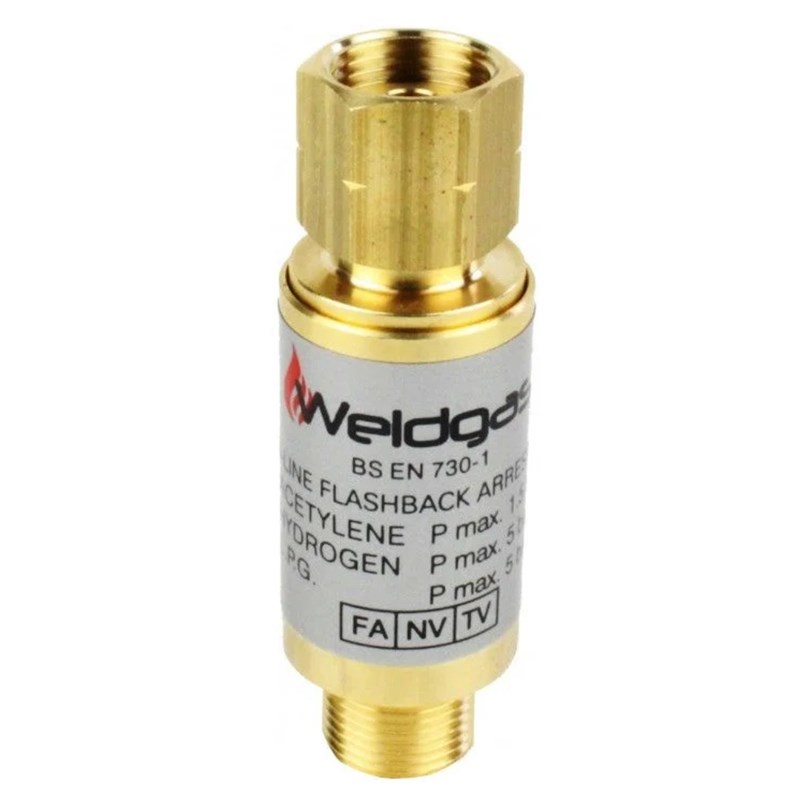

The Weldgas Regulator-Mounted Fuel Gas Flashback Arrestor GAS1016 / RF53N is a safety device designed to protect operators, regulators and gas equipment from flashbacks and reverse gas flow in oxy-fuel systems. Designed for direct regulator mounting, it combines multiple safety mechanisms to help prevent flame propagation and dangerous cross-gas mixing.
Features & Benefits
» Integrated flame arrestor helps extinguish an advancing flame before it can travel upstream towards the regulator and gas supply
» Non-return valve automatically prevents reverse gas flow and reduces the risk of dangerous cross-gas mixing
» Temperature-sensitive cut-off provides additional protection by shutting off the fuel gas supply in the event of excessive internal temperature
» Regulator-mounted configuration installs directly onto the downstream outlet of a compatible fuel gas regulator
» Sintered flame-arresting element provides effective flame quenching while maintaining gas flow
» Integrated inlet filter helps protect internal components against contamination from particles within the gas line
» Suitable for a range of fuel gases including acetylene, propane, hydrogen, methane and MAPP/MAP-Pro
» 3/8in BSP left-hand connection provides compatibility with commonly used UK fuel gas regulator and hose systems
» Suitable for oxy-fuel welding, cutting, brazing and heating equipment
Technical Specifications
» Brand: Weldgas
» Part Number: GAS1016
» Model: RF53N
» Product Type: Fuel Gas Flashback Arrestor
» Mounting Type: Regulator Mounted
» Gas Type: Fuel Gas
» Compatible Gases: Acetylene, Propane, Hydrogen, Methane And MAPP/MAP-Pro
» Connection: 3/8in BSP Left-Hand
» Flame Arrestor: Yes
» Non-Return Valve: Yes
» Temperature-Sensitive Cut-Off Valve: Yes
» Inlet Filter: Yes
» Standard: BS EN ISO 5175-1
