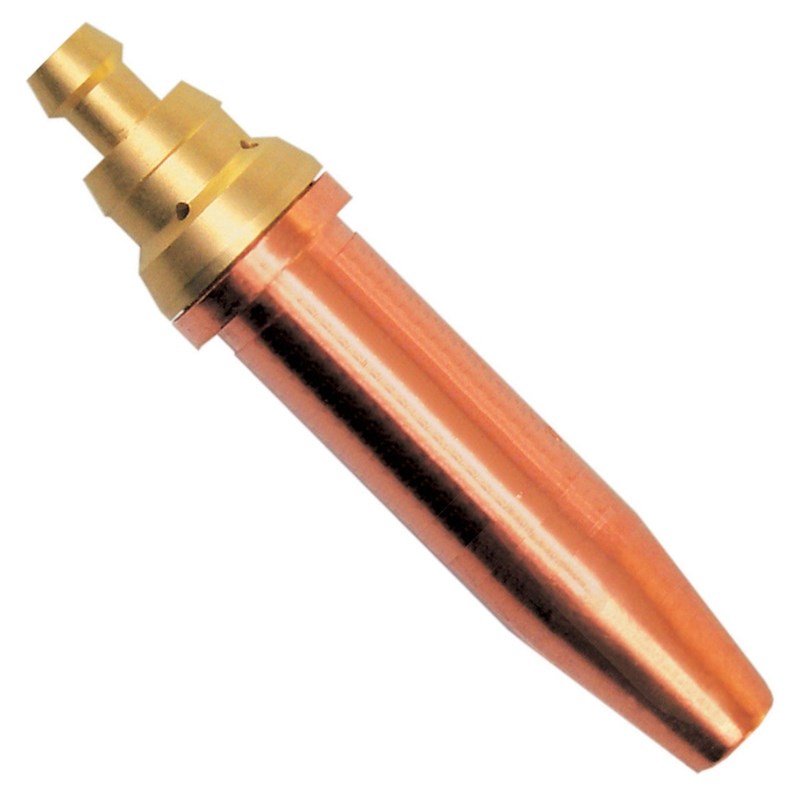

Nozzle Cutting PNM 3/32" Capacity 90-150mm
SKU:
10025334
The 3/32" (2.4mm) PNM Propane Cutting Nozzle is a heavy-duty oxy-propane cutting nozzle designed for cutting, profiling and dismantling thick mild steel sections. Its high-flow two-piece construction provides stable pre-heating and powerful cutting performance across material thicknesses from approximately 90mm to 150mm.
Features & Benefits
» Designed for heavy-duty oxy-propane cutting and profiling applications
» Suitable for cutting mild steel sections from approximately 90mm to 150mm thick
» Ideal for structural steel fabrication, dismantling, heavy engineering and industrial maintenance
» Two-piece construction provides stable flame characteristics and effective gas mixing when using propane
» High-flow splined brass inner core promotes efficient gas distribution and powerful pre-heating
» Tellurium copper outer shell provides excellent heat dissipation under demanding thermal conditions
» 2.4mm nozzle size delivers the high oxygen flow required for deep cutting applications
» Precision metal-to-metal seating provides a secure connection with compatible NM-style cutting equipment
» Compatible with heavy-duty NM hand cutting torches and high-capacity cutting attachments
» Available in standard and extended configurations for manual and mechanised cutting applications
Technical Specifications
» Nozzle Type: PNM
» Nozzle Size: 3/32"
» Nominal Orifice: 2.4mm
» Cutting Capacity: 90-150mm
» Gas Compatibility: Oxygen And Propane
» Construction: Two-Piece
» Inner Material: Brass
» Outer Material: Tellurium Copper
» Inner Profile: High-Flow Splined
» Standard Nozzle Length: 76mm
» Extended PNME / PNM-L Length: 88mm
» Seat Design: 3-Taper Metal-To-Metal
» Recommended Oxygen Pressure: 4.0-4.8 Bar
» Recommended Propane Pressure: 0.25-0.40 Bar
» Recommended Propane Cylinder Size: 19kg Minimum
» Torch Compatibility: Heavy-Duty NM-Style Cutting Torches And High-Capacity Cutting Attachments
