Nozzle Cutting PNM 1/8" Capcity 190-300mm
SKU:
10025335

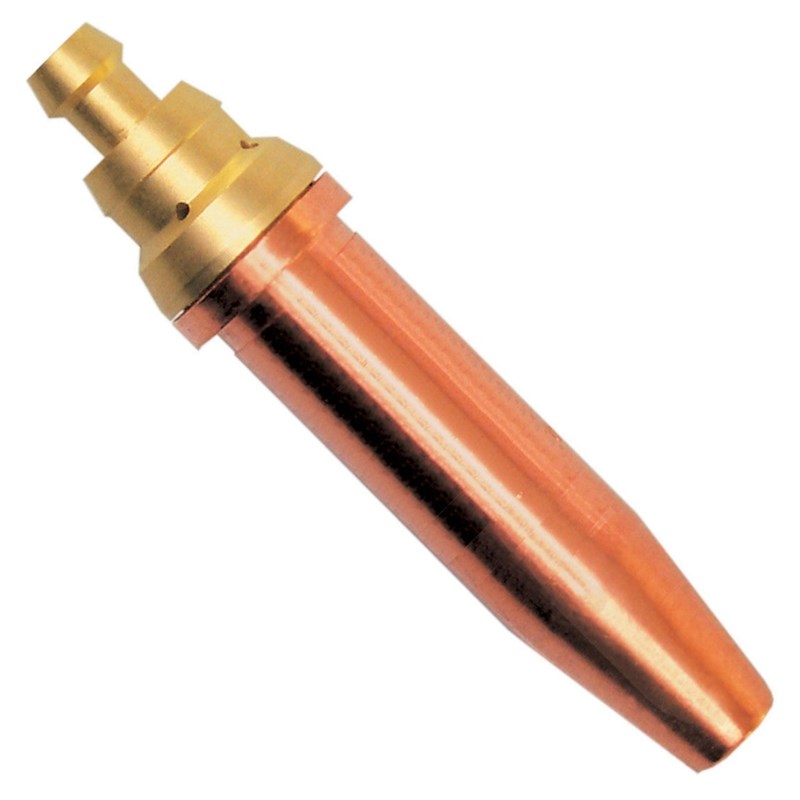

The 1/8" (3.2mm) PNM Propane Cutting Nozzle is an ultra-heavy-duty oxy-propane cutting nozzle designed for severe industrial steel cutting applications. Its high-flow two-piece construction provides the pre-heating and cutting performance required for thick mild steel sections from approximately 190mm to 300mm.
Features & Benefits
» Designed for ultra-heavy-duty oxy-propane cutting of exceptionally thick mild steel
» Suitable for cutting material from approximately 190mm to 300mm thick
» Ideal for heavy scrap processing, foundry work, demolition and structural steel applications
» Two-piece construction provides stable flame characteristics and effective gas mixing when using propane
» High-flow splined brass inner core promotes efficient gas distribution and powerful pre-heating
» Heavy-duty copper outer shell provides excellent heat dissipation under severe thermal loads
» Large 3.2mm nozzle size provides the high oxygen flow required for cutting extremely thick steel sections
» Precision metal-to-metal seating provides a secure connection with compatible NM-style cutting equipment
» Compatible with heavy-duty NM hand cutting torches and high-capacity cutting attachments
» Available in standard and extended configurations to suit manual and mechanised cutting applications
Technical Specifications
» Nozzle Type: PNM
» Nozzle Size: 1/8"
» Nominal Orifice: 3.2mm
» Cutting Capacity: 190-300mm
» Gas Compatibility: Oxygen And Propane
» Construction: Two-Piece
» Inner Material: Brass
» Outer Material: Tellurium Copper
» Inner Profile: High-Flow Splined
» Standard Nozzle Length: 76mm
» Extended PNME / PNM-L Length: 88mm
» Seat Design: 3-Taper Metal-To-Metal
» Recommended Oxygen Pressure: 4.5-6.2 Bar
» Recommended Propane Pressure: 0.35-0.50 Bar
» Recommended Propane Cylinder Size: 47kg Minimum
» Torch Compatibility: Heavy-Duty NM-Style Cutting Torches And High-Capacity Cutting Attachments
