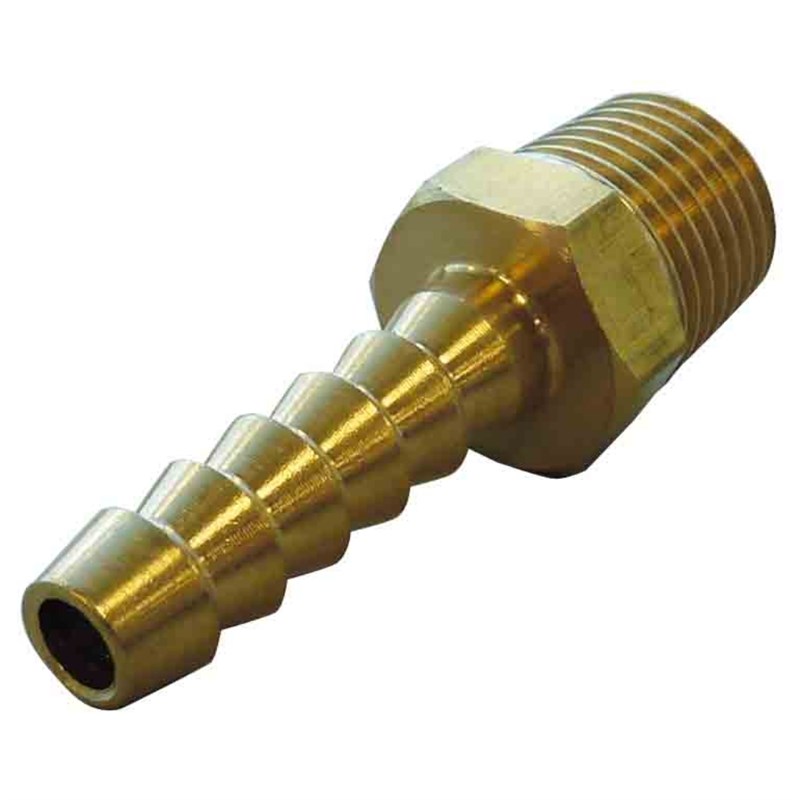

Hose Tail Hex 1"BSPT x 1" Brass MH16/16
SKU:
10014048
The PARKAIR BMH 16/16U Unplated Brass Hose Tail Adaptor is a straight hose fitting designed for high-volume connection between threaded ports and flexible hose systems. It highlights durable solid brass construction, secure BSPT threaded sealing, and a straight-through high-flow configuration for fluid and pneumatic applications.
Features & Benefits
» Straight adaptor design connects threaded ports directly to flexible hose assemblies
» Manufactured from solid unplated brass for strength and long-term durability
» 1in Male BSPT tapered thread provides secure mechanical sealing performance
» 1in hose barb connection designed for use with 1in internal diameter hose
» Straight-through high-flow configuration maintains full 1in nominal flow capacity throughout the connection
» Designed to support maximum fluid transfer with minimal pressure restriction
» Unplated finish makes it suitable for general industrial and pneumatic applications
» Brass construction offers dependable corrosion resistance and service life
» Hose tail profile provides secure hose retention when used with suitable hose clamps
» Suitable for high-volume fluid transfer and compressed air installations
» Compact and robust fitting supports efficient integration into demanding systems
Technical Specifications
» Product Name: PARKAIR Brass Hose Tail Adaptor
» Part Number: BMH 16/16U
» Brand: PARKAIR
» Product Type: Straight Through Hose Tail Adaptor
» Material: Unplated Brass
» Connection A: 1 in Male BSPT (British Standard Pipe Taper)
» Connection B: 1 in Hose Barb
» Hose Compatibility: 1 in Internal Diameter Hose
» Thread Type: Tapered Male Thread
» Configuration: Straight Through 1 in Thread To 1 in Hose
» Flow Configuration: High Flow Full Bore Design
» Construction: Solid Brass One Piece Design
» Finish: Natural Unplated Brass
» Application: Fluid Transfer And Pneumatic Systems
» Suitable Use: High Volume Industrial, Hydraulic And Commercial Applications
» Installation Requirement: Hose Should Be Secured Using Appropriate Hose Clamp
» Corrosion Resistance: Brass Construction Provides Good Environmental Resistance
