Hose Tail Hex 1"BSPT x 3/4" Brass MH16/12
SKU:
10014049

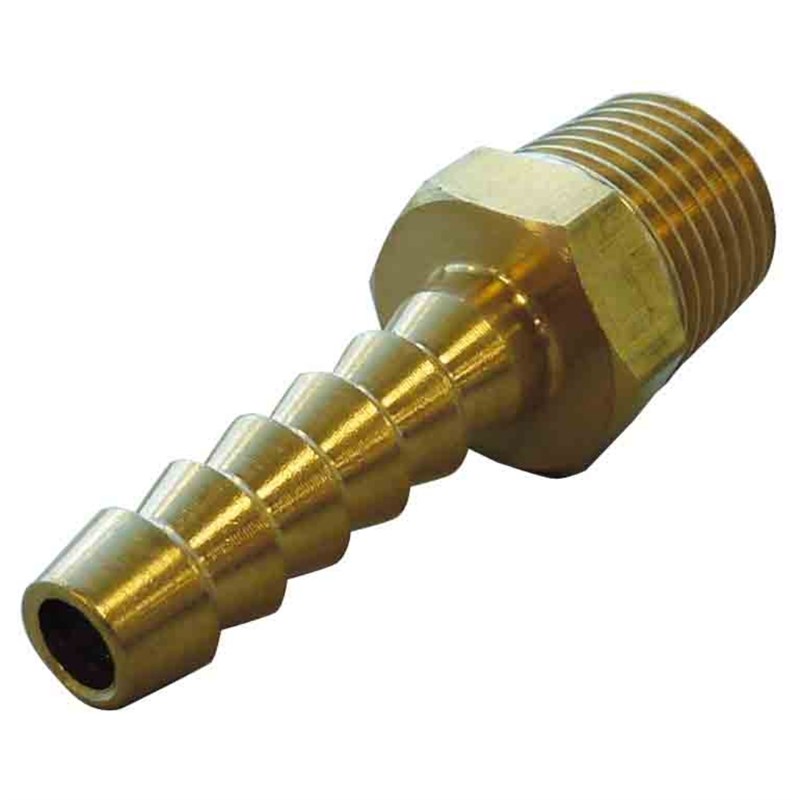

The PARKAIR BMH 16/12U Unplated Brass Hose Tail Adaptor is a straight hose fitting designed to connect threaded ports to smaller flexible hose assemblies in high-volume systems. It highlights durable solid brass construction, secure BSPT threaded sealing, and a step-down hose configuration for fluid and pneumatic applications.
Features & Benefits
» Straight adaptor design connects threaded ports directly to flexible hose assemblies
» Manufactured from solid unplated brass for strength and long-term durability
» 1in Male BSPT tapered thread provides secure mechanical sealing performance
» 3/4in hose barb connection designed for use with 3/4in internal diameter hose
» Step-down configuration allows connection from a high-capacity 1in outlet to a smaller 3/4in hose line
» Eliminates the need for separate reduction bushings in hose installations
» Unplated finish makes it suitable for general industrial and pneumatic applications
» Brass construction offers dependable corrosion resistance and service life
» Hose tail profile provides secure hose retention when used with suitable hose clamps
» Suitable for high-volume fluid transfer and compressed air installations
» Compact and robust fitting supports efficient system integration and controlled flow reduction
Technical Specifications
» Product Name: PARKAIR Brass Hose Tail Adaptor
» Part Number: BMH 16/12U
» Brand: PARKAIR
» Product Type: Straight Step Down Hose Tail Adaptor
» Material: Unplated Brass
» Connection A: 1 in Male BSPT (British Standard Pipe Taper)
» Connection B: 3/4 in Hose Barb
» Hose Compatibility: 3/4 in Internal Diameter Hose
» Thread Type: Tapered Male Thread
» Configuration: Step Down Adaptor From 1 in Thread To 3/4 in Hose
» Flow Configuration: High Capacity Reducer Design
» Construction: Solid Brass One Piece Design
» Finish: Natural Unplated Brass
» Application: Fluid Transfer And Pneumatic Systems
» Suitable Use: Industrial, Hydraulic And Commercial Applications
» Installation Requirement: Hose Should Be Secured Using Appropriate Hose Clamp
» Corrosion Resistance: Brass Construction Provides Good Environmental Resistance
