Back Cap Long 57Y02 Binzel
SKU:
10024985

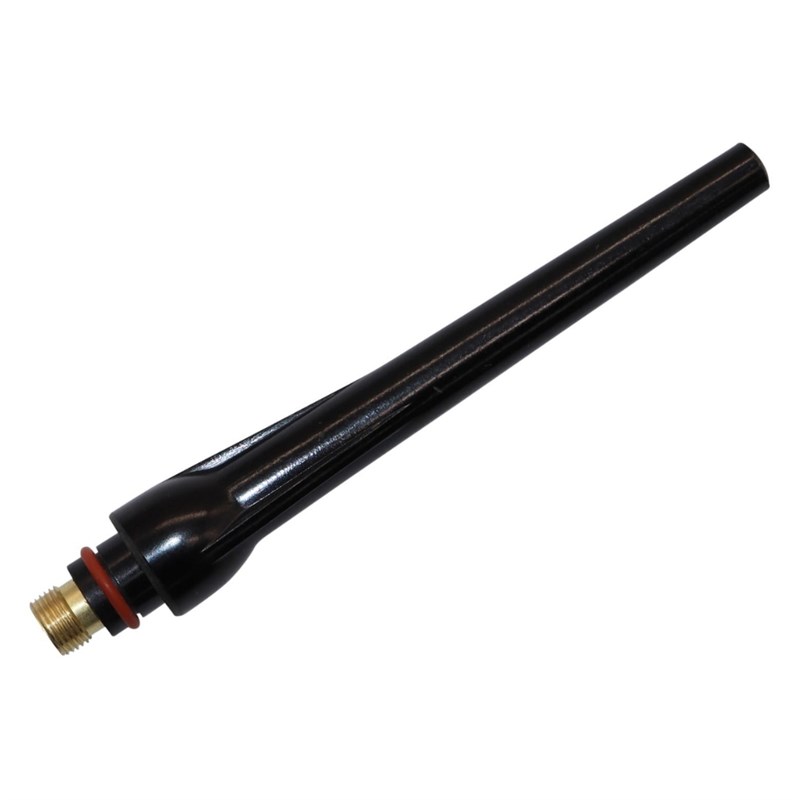

The Abicor Binzel 57Y02 Long TIG Torch Back Cap is a premium replacement consumable designed for 17, 18, and 26 Series TIG welding torches. It securely retains full-length tungsten electrodes while maintaining an airtight gas seal for reliable arc stability and consistent shielding gas coverage in both air-cooled and water-cooled TIG systems.
Features & Benefits
» Genuine Abicor Binzel replacement long back cap for 17, 18, and 26 Series TIG torches
» Securely clamps full-length 175mm tungsten electrodes without requiring them to be shortened
» Maintains a reliable shielding gas seal to improve weld quality and arc stability
» Manufactured from heat-resistant phenolic material for excellent electrical insulation and durability
» Brass threaded insert provides strength and long service life
» Fitted with a silicone O-ring to minimise shielding gas leakage
» Compatible with both air-cooled and water-cooled TIG torch systems
» Precision threaded design allows quick installation and secure retention
» Suitable for WP-17, WP-18, WP-26 and compatible Flex, Valve, and Flex-Valve torch variants
» Ideal for replacing worn or damaged back caps to maintain optimum TIG welding performance
Technical Specifications
» Brand: Abicor Binzel
» Product Name: Long TIG Torch Back Cap
» Manufacturer Part Number: 701.0001
» Industry Part Number: 57Y02
» Product Type: TIG Torch Back Cap
» Compatible Torch Series: 17, 18 And 26 Series
» Compatible Torch Models: WP-17, WP-18, WP-26, Flex, Valve And Flex-Valve Variants
» Cooling Compatibility: Air-Cooled And Water-Cooled
» Thread Size: 3/8" x 32 UNF
» Tungsten Compatibility: Full-Length 175mm Electrodes
» Body Material: Heat-Resistant Phenolic Compound
» Thread Insert Material: Brass
» Seal Type: Silicone Rubber O-Ring
» Length: 120mm
» Approximate Weight: 0.018kg
