Cable Lug T62 Tweco
SKU:
10040350

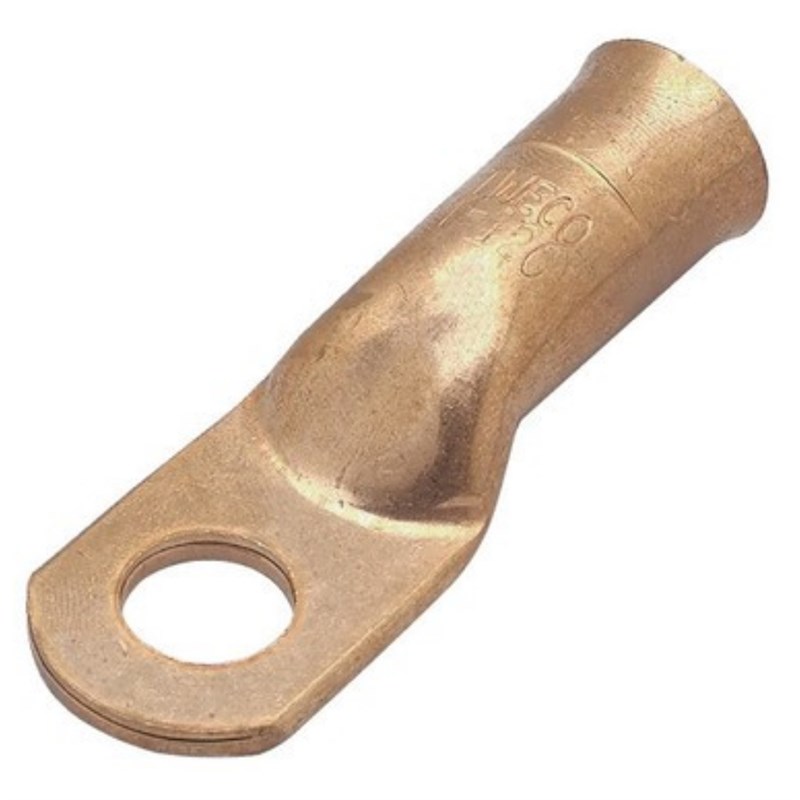

The Tweco T-62 TwecoLug 9520-1104 is a heavy-duty welding cable terminal connector designed for terminating #6 AWG to #2 AWG copper welding cable. Rated up to 150A, it features a high-conductivity construction, 17/32" stud hole and a flared cable barrel suitable for crimp or solder installation.
Features & Benefits
» Heavy-duty TwecoLug designed for terminating smaller to mid-range copper welding cables
» Rated for currents up to 150A for compatible welding applications
» Accommodates #6 AWG through #2 AWG copper welding cable
» High-conductivity metal construction supports efficient electrical current transfer
» 17/32" stud hole provides clearance for compatible 1/2" terminal studs
» 0.461" cable socket provides secure accommodation for compatible welding cable conductors
» Suitable for either mechanical crimping or solder installation
» Flared cable entry assists cable insertion and helps prevent fine copper strands from catching or splaying
» Heavy-wall construction provides durability for demanding welding environments
» Suitable for welding power sources, work leads, electrode leads and other welding cable connections
Technical Specifications
» Brand: Tweco
» Product Range: TwecoLugs
» Model: T-62
» Manufacturer Part Number: 9520-1104
» Product Type: Welding Cable Terminal Lug
» Maximum Current Rating: 150A
» Compatible Cable Size: #6 AWG To #2 AWG
» Stud Hole Diameter: 17/32" (Approximately 13.5mm)
» Compatible Stud Size: 1/2"
» Cable Socket Internal Diameter: 0.461" (Approximately 11.7mm)
» Installation Method: Crimp Or Solder
» Cable Entry: Flared
» Approximate Length: 70mm
» Approximate Width: 25.4mm
» Approximate Height: 12.7mm
» Approximate Weight: 0.11kg
» Application: Welding Cable Termination And Welding Equipment Connections
