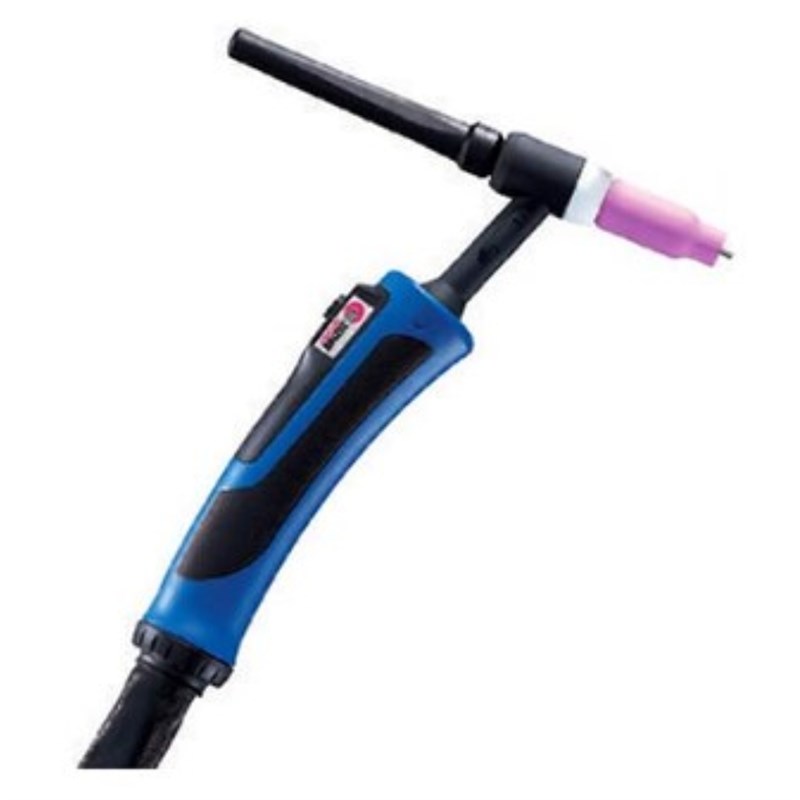

Tig Torch WP18FX-12R Water Cooled Binzel
SKU:
10025018
The Abicor Binzel WP18FX-12R Flexible Water-Cooled TIG Welding Torch is a professional-grade torch package designed for high-amperage TIG welding and improved access to difficult joint geometries. Its flexible WP18-series head can be manually adjusted to suit restricted welding positions, while the 12ft high-flexibility rubber cable assembly provides excellent durability and manoeuvrability. Rated up to 350A DC at 100% duty cycle, the liquid-cooled design provides reliable performance for demanding fabrication, pipework and industrial welding applications.
Features & Benefits
» Heavy-duty liquid-cooled TIG torch designed for demanding professional and industrial welding applications
» Flexible neck can be manually adjusted to improve access to pipework, structural joints and restricted welding positions
» Rated up to 350A DC at 100% duty cycle for continuous high-amperage TIG welding
» AC rating of approximately 250A to 260A at 100% duty cycle supports demanding AC TIG applications
» Liquid-cooling system efficiently manages torch temperature during prolonged welding operations
» 12ft cable assembly provides practical working reach while maintaining excellent manoeuvrability
» High-flexibility rubber cable construction provides excellent resistance to workshop wear, sparks and low-temperature conditions
» High-dielectric silicone-insulated flexible head provides electrical and thermal protection
» Supports tungsten electrodes from 0.5mm to 4.0mm for excellent application versatility
» Integrated momentary torch switch provides convenient remote control of compatible welding equipment
» Protective outer covering helps safeguard the cable, gas and coolant lines against abrasion and workshop damage
» Compatible with standard 17, 18 and 26-series TIG consumables, including standard and gas lens configurations
Technical Specifications
» Brand: Abicor Binzel
» Product Type: Flexible Water-Cooled TIG Welding Torch
» Model: WP18FX-12R
» Alternative Reference: BIN18F-12SC
» Torch Series: WP18
» Cooling Type: Liquid / Water-Cooled
» Torch Head Style: Flexible / Bendable Neck
» Maximum DC Rating: 350A At 100% Duty Cycle
» Maximum AC Rating: 250A To 260A At 100% Duty Cycle
» Cable Length: 12ft / Approximately 4m
» Power Cable Material: High-Flexibility Rubber
» Electrode Diameter Capacity: 0.5mm To 4.0mm
» Gas Connection: 3/8" BSP
» Coolant Connections: Water-In / Water-Out
» Torch Control: Integrated Momentary On / Off Switch
» Consumable Compatibility: Standard 17 / 18 / 26 Series TIG Consumables
» Welding Process: TIG / GTAW
» Standard: EN 60974-7
