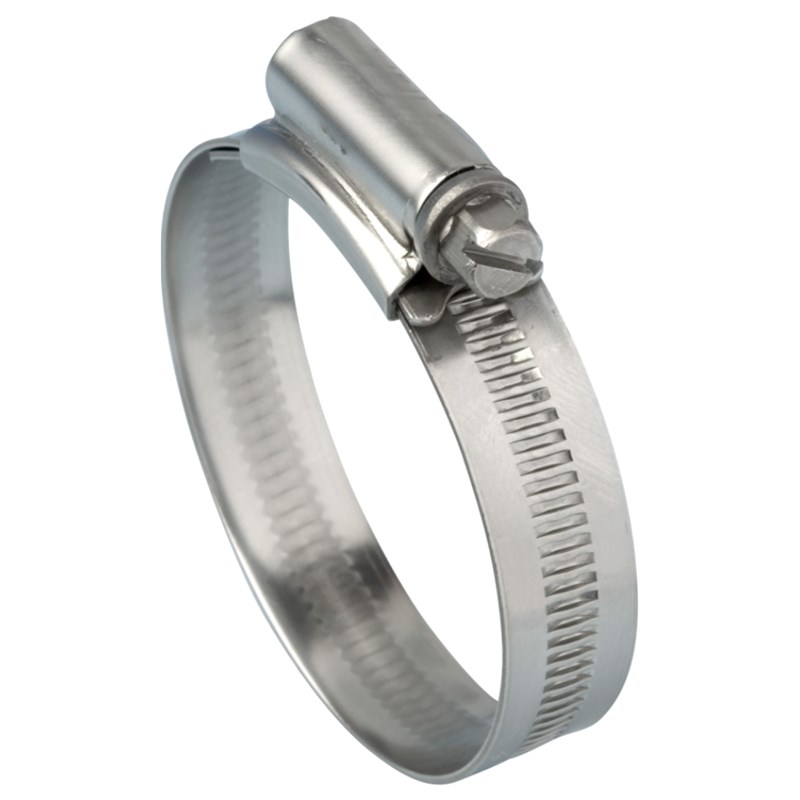

Clip Jubilee 40 - 55mm 2 Stainless
SKU:
10005228
The JCS Hi-Torque HGS55BP Stainless Steel Hose Jubilee Clip is a premium-quality worm drive clip designed for secure and reliable hose fastening in demanding environments. It highlights full 18/8 marine-grade stainless steel construction, compliance with rigorous international standards, and outstanding corrosion resistance, making it ideal for industrial, marine, and automotive applications.
Features & Benefits
» High-performance worm drive hose clip for general and heavy-duty applications
» Manufactured to exceed BS5315 – the most stringent hose clip standard
» BSI Kitemark and NATO approved for verified quality and reliability
» Exceeds all relevant DIN and SAE operational standards
» Made entirely from 18/8 (A2) marine-grade stainless steel for superior corrosion resistance
» Lloyd’s Register approved for use in saltwater and corrosive environments
» Delivers exceptional sealing ability, clamping force, and torque performance
» Trusted industry standard for industrial, marine, and automotive sectors
Technical Specifications
» Material: Stainless 304 (BS304 - EN 1.4301/1.4576)
» Size: 40-55mm
» Housing Length: 13mm
» Housing Width: 20mm
» Housing Height: 12mm
» Screw Diameter: 16mm
» Band Width: 13mm
» Band Thickness: 0.9mm
» Across Flats: 7mm
» Recommended Torque Setting (Nm / lb-in): 6.0 / 54
