Tig Torch WP18FX-25R Binzel
SKU:
10025019

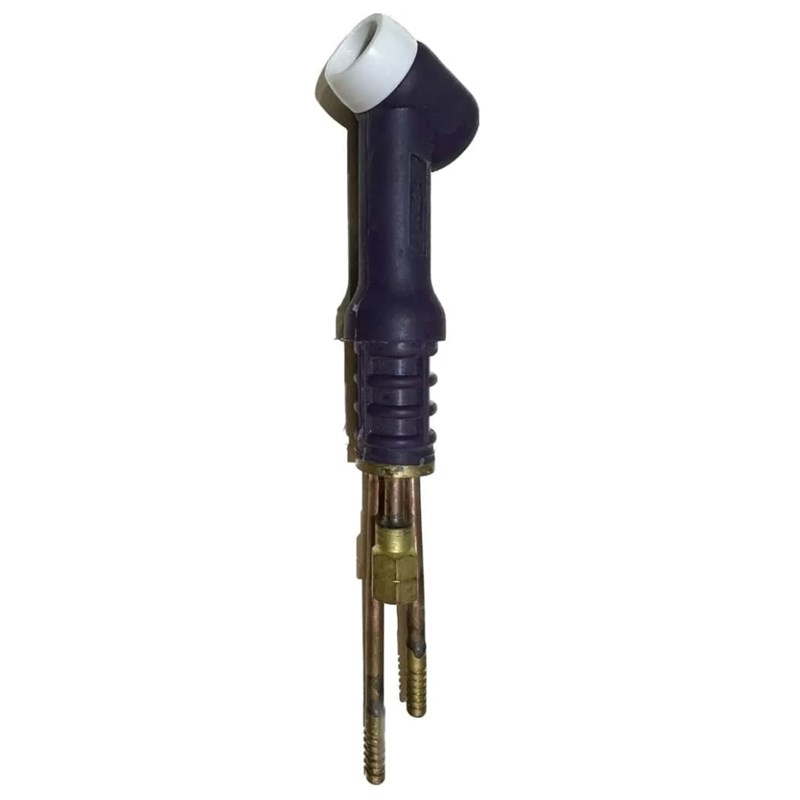

The Abicor Binzel WP18FX-25R Flexible Water-Cooled TIG Welding Torch is a heavy-duty industrial torch package designed for high-amperage TIG welding and improved access to complex joints. Its flexible neck can be manually adjusted to suit restricted welding positions, while the 25ft high-flexibility rubber cable assembly provides excellent working reach and durability. Rated up to 350A DC at 100% duty cycle, the liquid-cooled design delivers dependable performance for demanding professional and industrial TIG applications.
In Stock
Typical Lead Time: 13 Days
Features & Benefits
» Heavy-duty liquid-cooled TIG torch designed for demanding professional and industrial welding applications
» Flexible neck can be manually adjusted to improve access to pipe joints, structural corners and restricted welding positions
» Rated up to 350A DC at 100% duty cycle for continuous high-amperage TIG welding
» 260A AC rating at 100% duty cycle makes the torch suitable for demanding AC TIG applications
» Liquid-cooling system efficiently manages heat during prolonged welding operations
» 25ft cable assembly provides excellent working reach around large components and fabrication areas
» High-flexibility rubber cable construction provides excellent resistance to workshop wear, hot spatter and cold conditions
» Supports tungsten electrodes from 0.5mm to 4.0mm for excellent application versatility
» Integrated torch switch enables convenient remote control of compatible welding equipment
» Protective outer cable covering helps safeguard the internal power, gas and coolant lines against workshop damage
» Standard 18-series front-end configuration provides compatibility with widely available TIG consumables
» Compatible with standard and gas lens consumable configurations for optimised shielding gas coverage
Technical Specifications
» Brand: Abicor Binzel
» Product Type: Flexible Water-Cooled TIG Welding Torch
» Model: WP18FX-25R
» Alternative Reference: BIN18F-25SC
» Torch Series: WP18
» Cooling Type: Liquid / Water-Cooled
» Torch Head Style: Flexible / Bendable Neck
» Maximum DC Rating: 350A At 100% Duty Cycle
» Maximum AC Rating: 260A At 100% Duty Cycle
» Cable Length: 25ft / Approximately 7.6m
» Power Cable Material: High-Flexibility Rubber
» Electrode Diameter Capacity: 0.5mm To 4.0mm
» Gas Connection: 3/8" BSP Right-Hand Female
» Torch Control: Integrated On / Off Switch
» Consumable Compatibility: Standard 17 / 18 / 26 Series TIG Consumables
» Welding Process: TIG / GTAW
» Standard: EN 60974-7
