Collet Standard 1/8 10N25 Binzel
SKU:
10025038

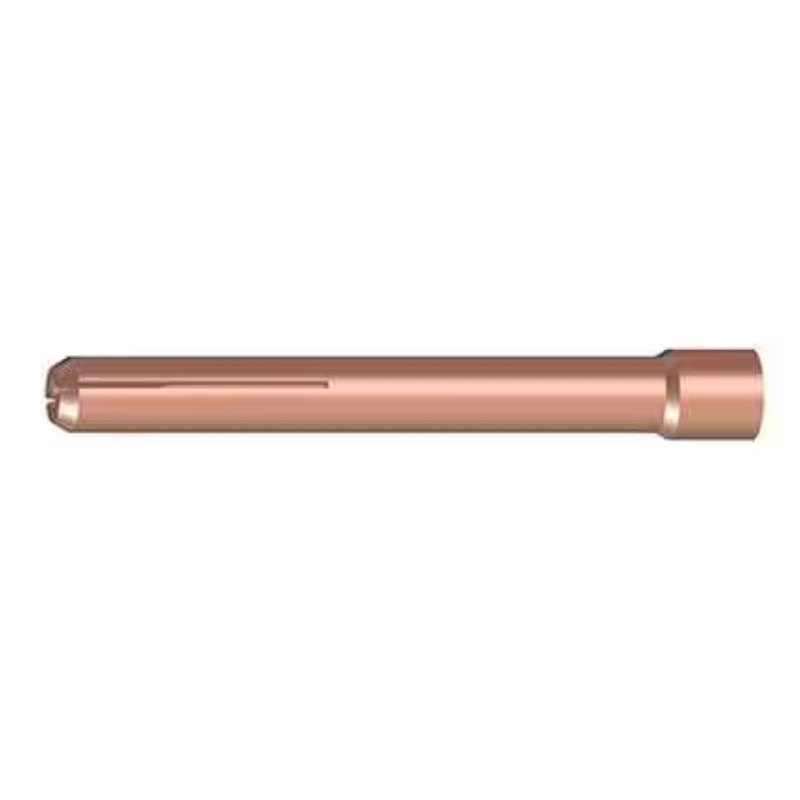

The Abicor Binzel 10N25 Standard TIG Collet 3.2mm is a premium replacement consumable designed for 17, 18, and 26 Series TIG welding torches. Manufactured from highly conductive copper alloy, it securely grips 3.2mm tungsten electrodes to provide excellent electrical current transfer, reliable arc stability, and consistent welding performance.
Features & Benefits
» Genuine Abicor Binzel standard TIG collet for professional welding applications
» Designed to securely grip 3.2mm (1/8") tungsten electrodes for accurate positioning
» Dual-slit design provides even clamping pressure for reliable electrode retention
» Manufactured from highly conductive tellurium copper for excellent electrical conductivity and heat transfer
» Promotes stable arc starts and consistent welding performance
» Compatible with 17, 18, and 26 Series TIG welding torches
» Suitable for both air-cooled and water-cooled TIG torch systems
» Compatible with both standard collet bodies and gas lens collet bodies
» Precision machined for long service life and dependable performance
» Ideal for fabrication, maintenance, repair, and precision TIG welding applications
Technical Specifications
» Brand: Abicor Binzel
» Product Name: Standard TIG Collet
» Manufacturer Part Number: 10N25
» Alternative Part Number: 701.0022
» Industry Reference: 10N25
» Product Type: TIG Collet
» Electrode Size: 3.2mm (1/8")
» Compatible Torch Series: 17, 18 And 26 Series
» Compatible Torch Models: WP-17, WP-18, WP-26, SR17, SR18, SR26, Flex, Valve And Flex-Valve Variants
» Cooling Compatibility: Air-Cooled And Water-Cooled
» Compatible Standard Collet Body: 10N28
» Compatible Gas Lens Collet Body: 45V27
» Material: Tellurium Copper Alloy
» Clamping Design: Dual-Slit Expansion Configuration
» Internal Bore: 3.2mm
» Overall Length: 50mm
» Outer Diameter: Approximately 4.7mm
» Approximate Weight: 0.005kg
