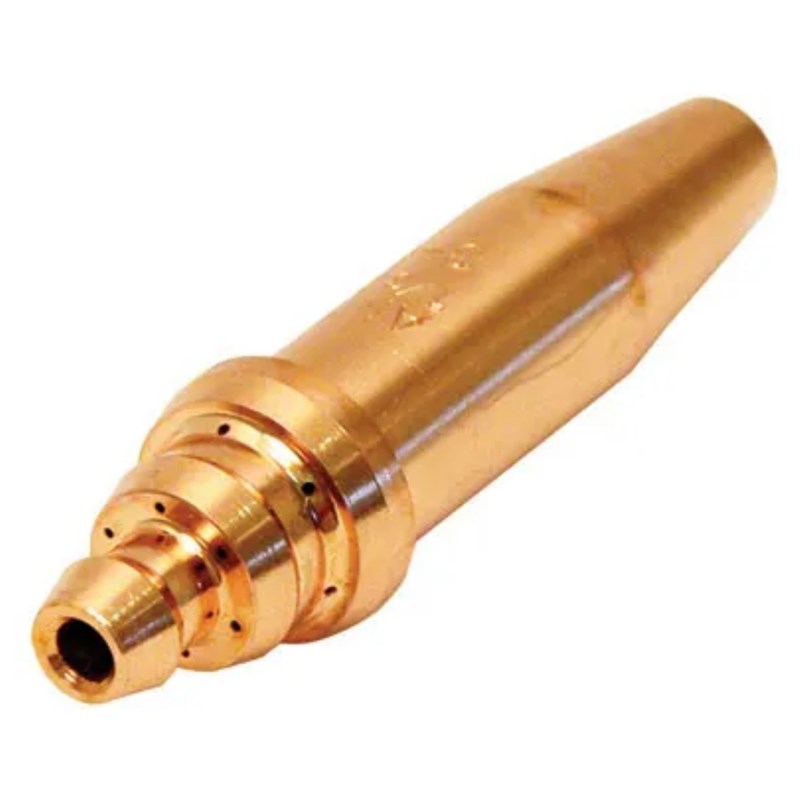

Nozzle Cutting ANM 1/32" Capacity 3-6mm
SKU:
10025324
The 1/32" (0.8mm) ANM Acetylene Cutting Nozzle is a precision oxy-acetylene cutting nozzle designed for clean, controlled cutting of thin mild steel and sheet material. Its small 0.8mm orifice provides a concentrated cutting oxygen stream, helping minimise heat input, kerf width and distortion on lighter-gauge workpieces.
Features & Benefits
» Designed specifically for precision oxy-acetylene cutting of thin mild steel
» 0.8mm central orifice provides a concentrated cutting oxygen stream for controlled kerf formation
» Suitable for material thicknesses from approximately 3mm to 6mm
» Outer pre-heat passages provide a stable oxy-acetylene flame for efficient material heating
» One-piece copper construction provides excellent heat dissipation and durability
» Precision metal-to-metal seating helps provide a secure gas-tight connection to compatible torch heads
» Small nozzle profile helps reduce unnecessary heat input and distortion when cutting thinner materials
» Compatible with standard NM-style hand cutting torches and cutting attachments
» Suitable for fabrication, maintenance, sheet-metal and general workshop cutting applications
Technical Specifications
» Nozzle Type: ANM
» Nozzle Size: 1/32"
» Nominal Orifice: 0.8mm
» Cutting Capacity: 3-6mm
» Gas Compatibility: Oxy-Acetylene
» Material: Tellurium Copper
» Construction: One-Piece
» Standard Nozzle Length: 76mm
» Seat Design: Precision-Turned Metal-To-Metal
» Recommended Oxygen Pressure: 1.5 Bar
» Recommended Acetylene Pressure: 0.15 Bar
» Torch Compatibility: NM-Style Cutting Torches And Cutting Attachments
