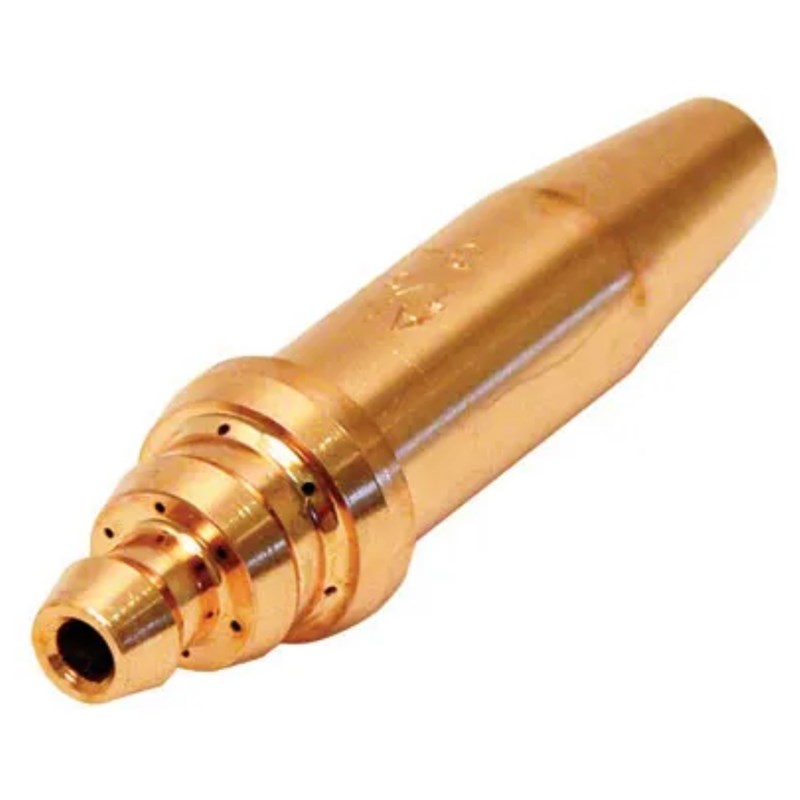

Nozzle Cutting ANM 3/64" Capacity 5-12mm
SKU:
10025325
The 3/64" (1.2mm) ANM Acetylene Cutting Nozzle is a precision oxy-acetylene cutting nozzle designed for controlled thermal cutting of light mild steel plate. Its 1.2mm cutting orifice combines efficient pre-heating with a concentrated oxygen stream, making it suitable for fabrication, maintenance and general engineering applications.
In Stock
Typical Lead Time: 11 Days
Features & Benefits
» Designed for precision oxy-acetylene cutting of light mild steel plate
» Suitable for material thicknesses from approximately 5mm to 12mm
» 1.2mm central cutting orifice provides a concentrated oxygen stream for clean and controlled cutting
» Precision outer flame passages provide stable and efficient pre-heating of the workpiece
» One-piece tellurium copper construction provides excellent heat dissipation and durability
» Precision metal-to-metal seating helps provide a secure, gas-tight connection with compatible torch heads
» Designed to provide a good balance between cutting performance and gas economy
» Compatible with standard NM-style hand cutting torches and cutting attachments
» Suitable for fabrication, automotive repair, maintenance and general workshop applications
Technical Specifications
» Nozzle Type: ANM
» Nozzle Size: 3/64"
» Nominal Orifice: 1.2mm
» Cutting Capacity: 5-12mm
» Gas Compatibility: Oxy-Acetylene
» Material: Tellurium Copper
» Construction: One-Piece
» Standard Nozzle Length: 76mm
» Extended ANME / ANM-L Length: 88mm
» Seat Design: Precision-Turned Metal-To-Metal
» Recommended Oxygen Pressure: 2.0-2.1 Bar
» Recommended Acetylene Pressure: 0.15-0.35 Bar
» Cutting Speed: Approximately 450-500mm/Min
» Torch Compatibility: NM-Style Cutting Torches And Cutting Attachments
