Camlock 6" Part C Alloy .
SKU:
10014397

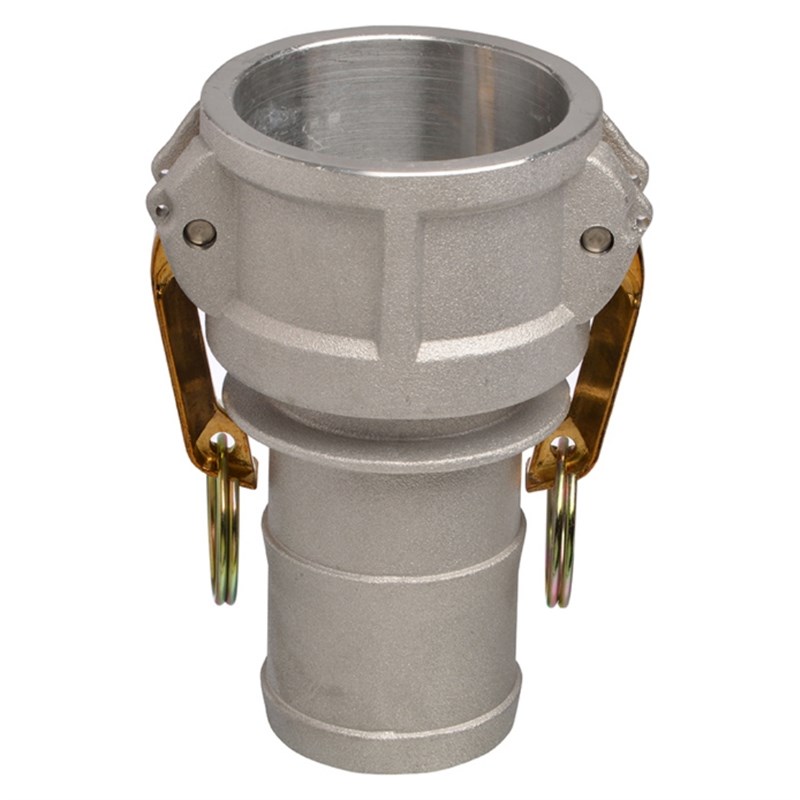

The Snaplock 6" Aluminium Part C Camlock Coupler is a heavy-duty quick-release hose coupling designed for high-volume fluid transfer applications. Featuring a 6" female Camlock coupler with an integrated 6" hose tail, it provides a fast, secure connection for large-bore suction and discharge hoses used in dewatering, wastewater management, agriculture and industrial fluid handling.
Features & Benefits
» Part C Camlock coupling with female Camlock coupler and hose tail connection
» Manufactured from high-strength cast aluminium alloy for durability and reduced weight
» Twin heavy-duty cam arms provide fast, tool-free connection and disconnection
» Integrated safety pin holes help prevent accidental disconnection during operation
» Multi-serrated hose tail delivers a secure grip inside large-bore flexible hoses
» Supplied with a nitrile (NBR) gasket for reliable sealing against water, oils, fuels and wastewater
» Manufactured to EN 14420-7 and A-A-59326 (formerly MIL-C-27487) standards for full interchangeability
» Ideal for construction dewatering, municipal bypass pumping, slurry transfer, irrigation and industrial liquid handling
Technical Specifications
» Brand: Snaplock
» Product Type: Part C Camlock Coupler
» Nominal Size: 6" (DN150)
» Camlock Type: Part C
» Camlock Connection: 6" Female Camlock Coupler
» Hose Connection: 6" Hose Tail (Approx. 152.4mm OD)
» Camlock Standard: EN 14420-7 / A-A-59326 (Formerly MIL-C-27487)
» Locking Mechanism: Twin Cam Arms With Safety Pin Holes
» Body Material: High-Strength Cast Aluminium Alloy
» Cam Arms & Pins: Stainless Steel Or Brass
» Gasket Material: Nitrile Rubber (NBR / Buna-N)
» Maximum Working Pressure: 3.5–5 Bar (50–72 PSI)
» Operating Temperature: -40°C To +100°C (Fluid Dependent)
» Suitable Hose Types: Heavy-Duty Rubber, PVC Layflat And Suction/Discharge Hose
» Suitable Media: Water, Wastewater, Slurry, Oils, Fuels And Non-Aggressive Industrial Liquids
» Not Suitable For: Compressed Air, Steam Or Gas Applications
» Typical Applications: Construction Dewatering, Municipal Wastewater Bypass, Agricultural Slurry Transfer, Irrigation, Tanker Operations And Industrial Fluid Transfer
